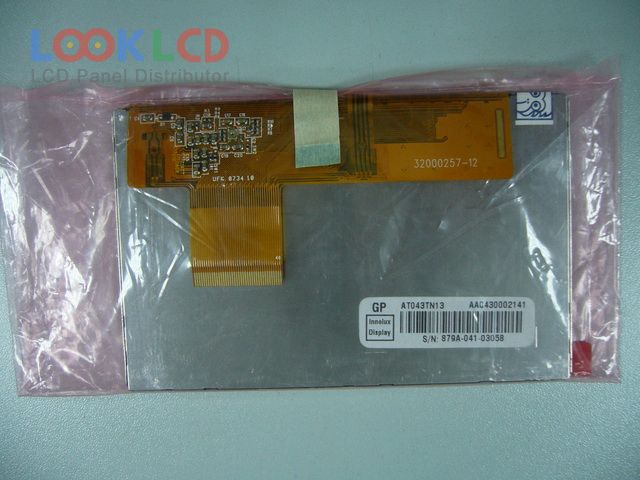

| Part Number | AT043TN13 |
| Mark | Innolux |
| Gréisst | 4.3 |
| Applikatioun | PND |
| Opléisung | 480×272 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | INNOLUX |
| Panel Modell | AT043TN13 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 4.3 inch |
| Resolutioun | 480(RGB)×272 , WQVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 95.04×53.856 mm |
| skizzéieren | 105.5×67.2 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S2PWLED |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| Input Volt | (2.5/3.3)/5.0V (Typ.)(VDD/AVDD) |
| rohs: | |
| Applikatioun | PND |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LR043AC212 | Innolux | 4.3 | 480×272 |
| 43WQW1H | SII | 4.3 | 480×272 |
| 43WQW4T | SII | 4.3 | 480×272 |
| 43WVF0H | SII | 4.3 | 800×480 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| DLC0430LZG-6 | Other | 4.3 | 480×272 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| TM047NBH01 | Tianma | 4.7 | 480×272 |
