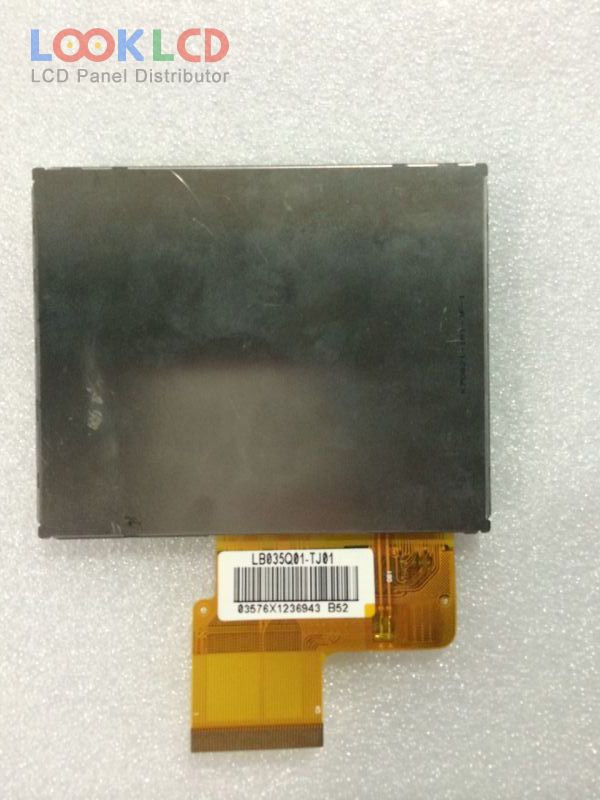

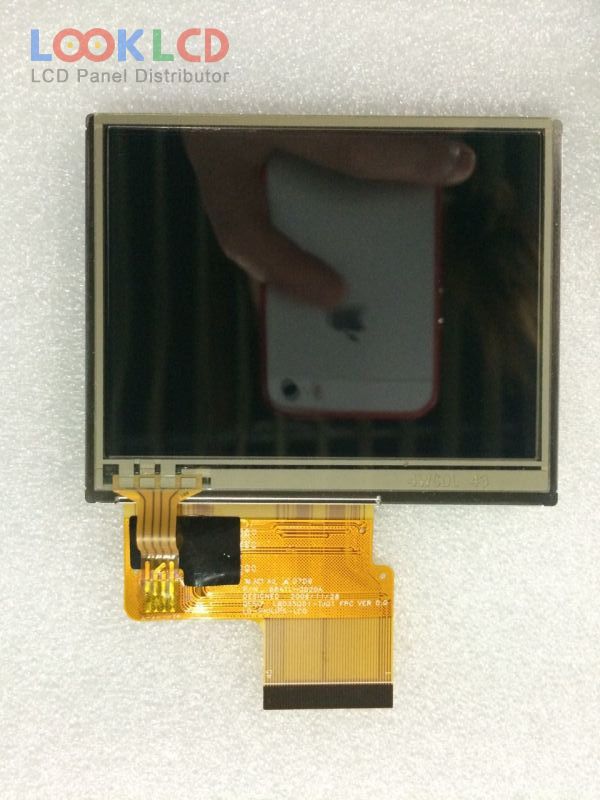

| Part Number | LB035Q01-TJ01 |
| Mark | LG Display |
| Gréisst | 3.5 |
| Applikatioun | PND |
| Opléisung | 320×240 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 300:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | TTL |
| Panel Mark | LG.Philips LCD |
| Panel Modell | LB035Q01-TJ01 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 3.5 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 70.08×52.56 mm |
| skizzéieren | 78.1×62.95×1.53 mm |
| Uewerfläch | Hard coating |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 70Hz |
| Signal Interface | TTL (1 ch, 8-bit), 45 pins |
| Input Volt | 3.3/5.0V (Typ.)(VDD/AVDD) |
| rohs: | |
