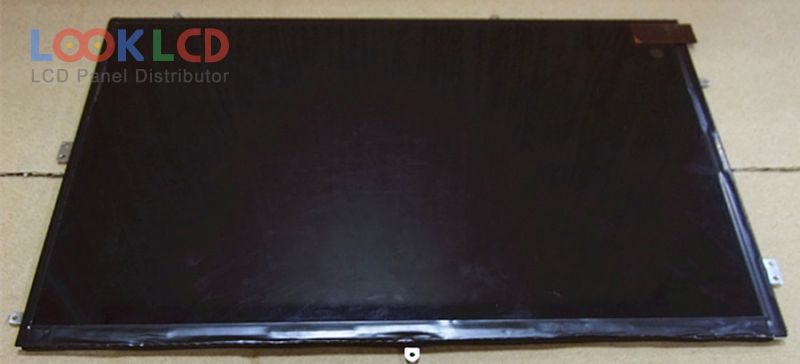

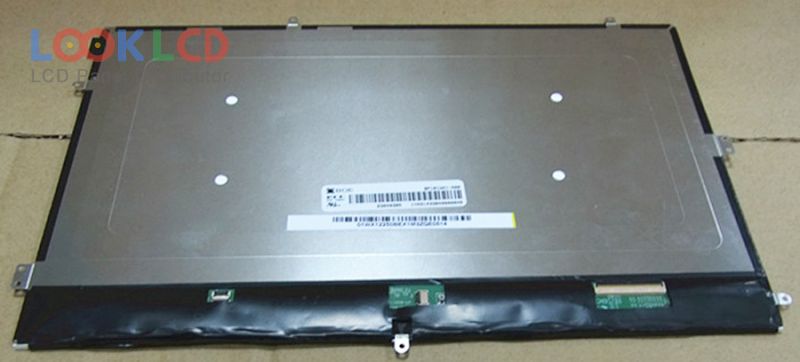

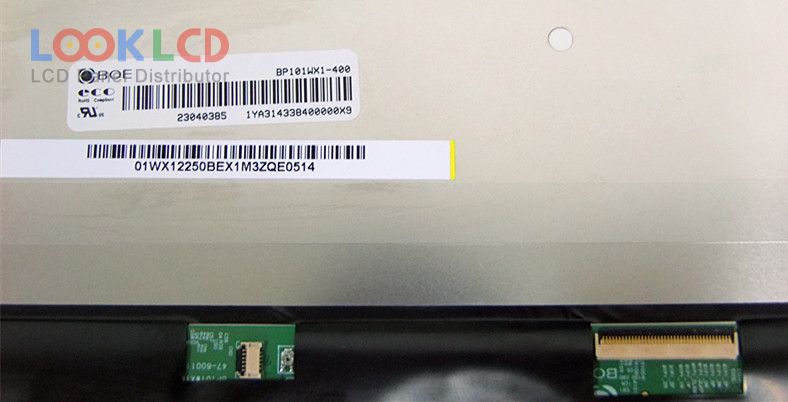

| Part Number | BP101WX1-400 |
| Mark | BOE |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | BOE |
| Panel Modell | BP101WX1-400 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | ADS, Normally Black, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| skizzéieren | 229.46×149.15×4.5 mm |
| Uewerfläch | Antiglare, Antireflection |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193150% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | MIPI (4 data lanes), 40 pins |
| Input Volt | 3.7V (Typ.) |
| Applikatioun | PAD |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| BP101WX1-210 | BOE | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| BP101WX1-400 | BOE | 10.1 | 1280×800 |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| LP101WH1-TLA3 | LG Display | 10.1 | 1366×768 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| BP096WX1-100 | BOE | 9.6 | 800×1280 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| LPM089A001A | JDI | 8.9 | 2560×1600 |
| LQ104X2LX05B | SHARP | 10.4 | 1024×768 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
