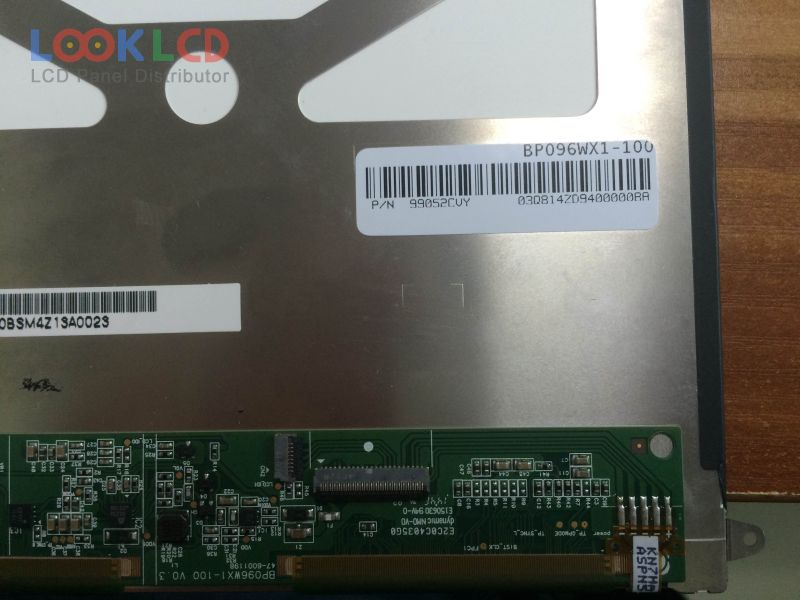

| Part Number | BP096WX1-100 |
| Mark | BOE |
| Gréisst | 9.6 |
| Applikatioun | PAD |
| Opléisung | 800×1280 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | BOE |
| Panel Modell | BP096WX1-100 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 9.6 inch |
| Resolutioun | 800(RGB)×1280 , WXGA |
| Display Modus | ADS, Normally Black, Transmissive |
| aktiv Beräich | 129×206.4 mm |
| skizzéieren | 136.8×217.1×4.2 mm |
| Uewerfläch | Antiglare (Haze 3.1%) |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 20/20 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S4PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 45 pins |
| Input Volt | 1.8/3.7V (Typ.)(VDD/VDDI) |
| Applikatioun | PAD |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| HJ080IA-01B | Innolux | 8.0 | 1024×768 |
| HV070WX2-1E0 | HYDIS | 7.0 | 800×1280 |
| LD083WU1-SPA3 | LG Display | 8.3 | 1200×1920 |
| LP101WH4-SLAB | LG Display | 10.1 | 1366×768 |
| LTN097XL01-A01 | Samsung | 9.7 | 1024×768 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
