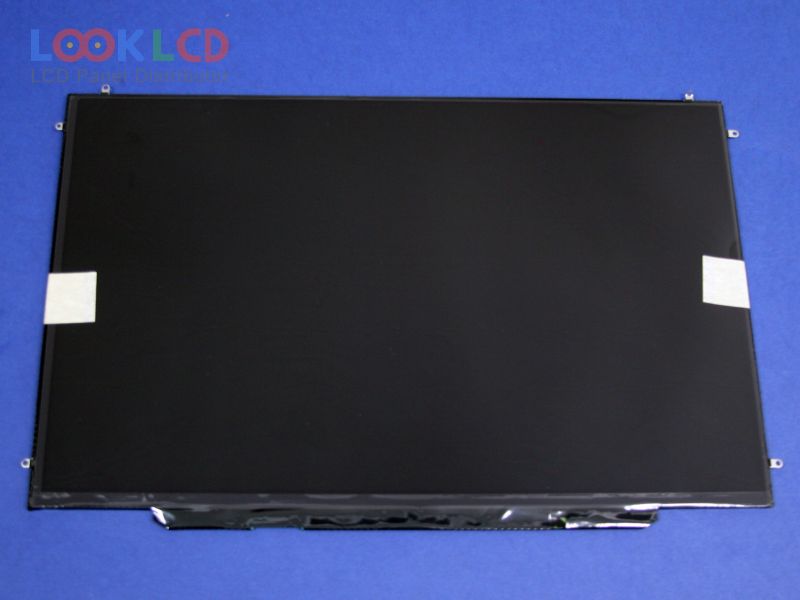

| Part Number | B154SW02 V0 |
| Mark | AUO |
| Gréisst | 15.4 |
| Applikatioun | NBPC |
| Opléisung | 1680×1050 |
| Zesummesetzung | LCM |
| Hellegkeet | 330 |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | B154SW02 V0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.4 inch |
| Resolutioun | 1680(RGB)×1050 , WSXGA+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 331.38×207.11 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 330 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193172% |
| Äntwert Zäit | 12/4 (Typ.)(Tr/Td) |
| Vue Wénkel | 35/35/30/30 (Typ.)(CR≥100)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLED |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| B154SW01 V0 | AUO | 15.4 | 1680×1050 |
| B154SW01 V1 | AUO | 15.4 | 1680×1050 |
| B154SW01 V2 | AUO | 15.4 | 1680×1050 |
| B154SW01 V9 | AUO | 15.4 | 1680×1050 |
| B154SW01 VB | AUO | 15.4 | 1680×1050 |
| B154SW02 V0 | AUO | 15.4 | 1680×1050 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| G154I1-LE1 | Innolux | 15.4 | 1280×800 |
| LP154WE3-TLA2 | LG Display | 15.4 | 1680×1050 |
| N154Z3-L01 | Innolux | 15.4 | 1680×1050 |
| HB140FH1-301 | BOE | 14.0 | 1920×1080 |
| HB156WX1-100 | BOE | 15.6 | 1366×768 |
| LTN140AT06-A01 | Samsung | 14.0 | 1366×768 |
| LTN141BT01-004 | Samsung | 14.1 | 1440×900 |
| LTN150XB-L02 | Samsung | 15.0 | 1024×768 |
| LTN150XG-L02 | Samsung | 15.0 | 1024×768 |
| LTN170BT08-G01 | Samsung | 17.0 | 1440×900 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N141I1-L04 | Innolux | 14.1 | 1280×800 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
