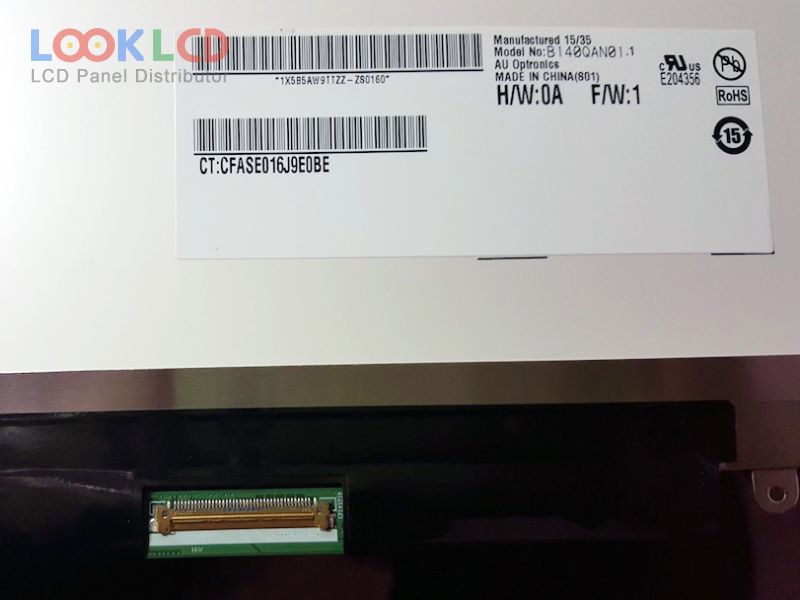

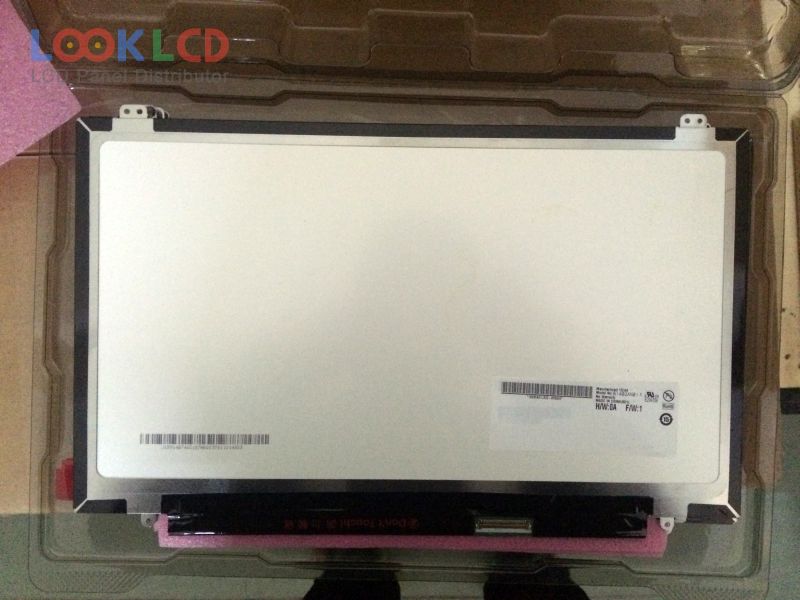

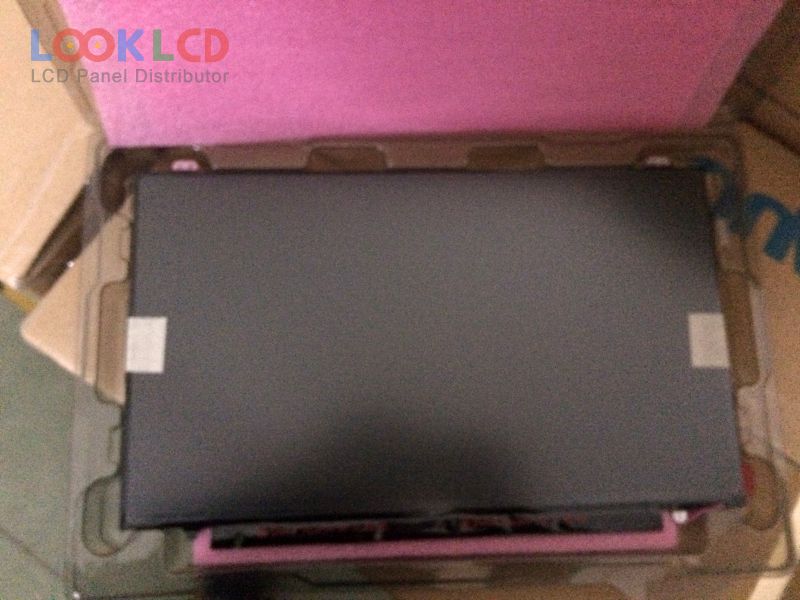

| Part Number | B140QAN01.1 |
| Mark | AUO |
| Gréisst | 14.0 |
| Applikatioun | NBPC |
| Opléisung | 2560×1440 |
| Zesummesetzung | LCM |
| Hellegkeet | 340 |
| CR | 700:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | AUO |
| Panel Modell | B140QAN01.1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.0 inch |
| Resolutioun | 2560(RGB)×1440 , Quad-HD |
| Display Modus | AHVA, Normally Black, Transmissive |
| aktiv Beräich | 309.35×174.01 mm |
| skizzéieren | 320.4×205.1×2.6 mm |
| Form Stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 340 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (4 Lanes), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
