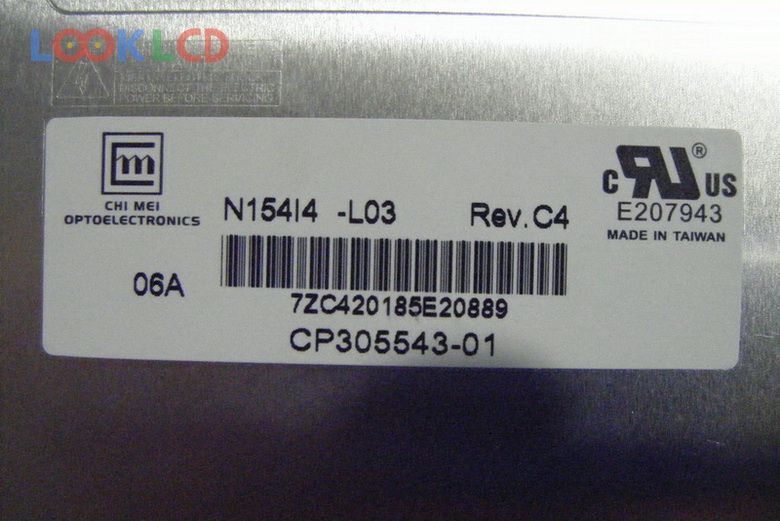

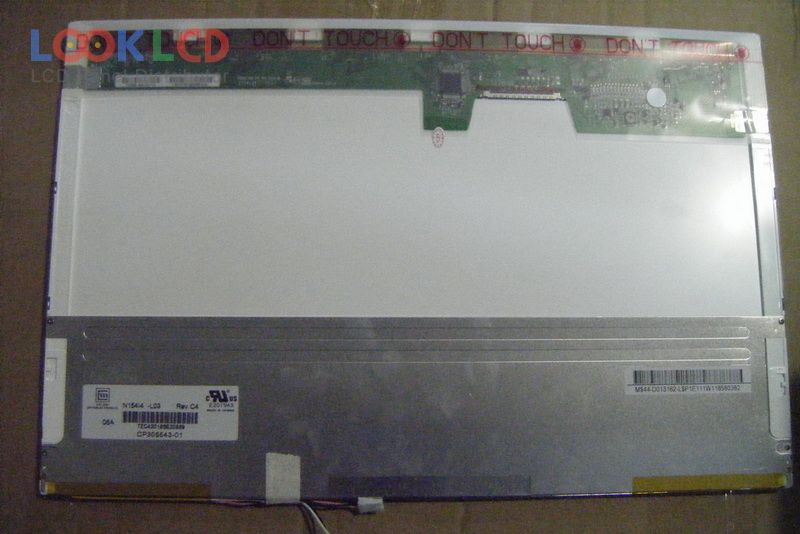

| Part Number | N154I4-L03 |
| Mark | Innolux |
| Gréisst | 15.4 |
| Applikatioun | NBPC |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 600 |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | N154I4-L03 3 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.4 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 331.2×207 mm |
| skizzéieren | 344×224×6.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 600 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 1.3/3.7 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| CLAA154WA05A | CPT | 15.4 | 1280×800 |
| LP154WX4-TLCB | LG Display | 15.4 | 1280×800 |
| N154I2-L01 | Innolux | 15.4 | 1280×800 |
| N154I2-L02 | Innolux | 15.4 | 1280×800 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
| N154I3-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| N154I5-L02 | Innolux | 15.4 | 1280×800 |
| N154I6-L03 | Innolux | 15.4 | 1280×800 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| HSD110PHW2-A00 | HannStar | 11.0 | 1366×768 |
| HV133WX1-100 | HYDIS | 13.3 | 1280×800 |
| LP133WX2-TLGV | LG Display | 13.3 | 1280×800 |
| LP140QH1-SPA2 | LG Display | 14.0 | 2560×1440 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPE1 | LG Display | 15.6 | 1366×768 |
| LTN154X3-L03 | Samsung | 15.4 | 1280×800 |
| N154I6-L03 | Innolux | 15.4 | 1280×800 |
