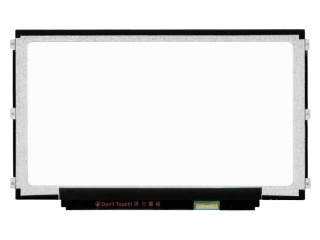

| Part Number | B125XTN01.0 HW1A |
| Mark | AUO |
| Gréisst | 12.5 |
| Applikatioun | Laptop |
| Opléisung | 1366×768 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | AUO |
| Panel Modell | B125XTN01.0 HW1A (AUO106C) |
| Panel Gréisst | 12.5" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1366(RGB)×768, WXGA, 125PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 276.615(W)×155.52(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 300.4(W)×181.4(H) ×3(D) mm |
| Uewerfläch | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) (TM) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10) |
| Display Modus | TN, Normally White, Transmissive |
| beschte Vue op | 6 o'clock |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| weisen Faarwen | 262K 45% NTSC |
| Lampe Typ | WLED , 15K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Applikatioun | Laptop |
| Signal Interface | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
