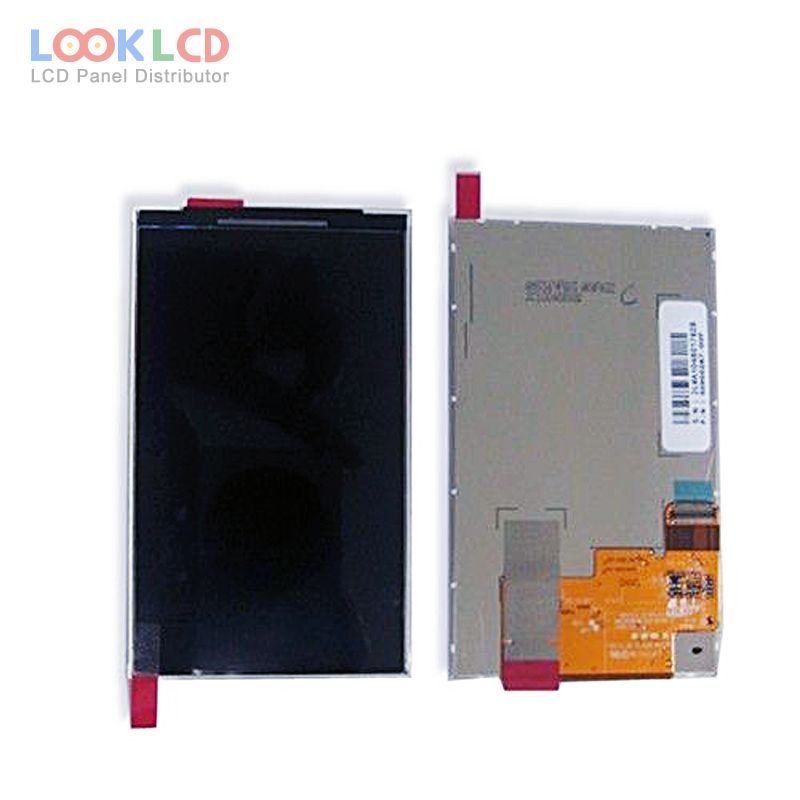

| Part Number | AMS369FG03-002 |
| Mark | Samsung |
| Gréisst | 3.7 |
| Applikatioun | MPH |
| Opléisung | 480×800 |
| Zesummesetzung | OLED |
| Hellegkeet | 250 |
| CR | 10000:1 |
| Faarwen | 262K |
| Géigeliicht | self |
| Interface | TTL |
| Panel Mark | SAMSUNG |
| Panel Modell | AMS369FG03-002 |
| Panel Typ | AM-OLED , OLED |
| Panel Gréisst | 3.7 inch |
| Resolutioun | 480RG(BG)×800 , WVGA |
| aktiv Beräich | 48.24×80.4 mm |
| skizzéieren | 53.94×90 mm |
| Uewerfläch | Hard coating (2H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 10000 : 1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE1931106% |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥200)(L/R/U/D) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) + SPI, 40 pins |
| Input Volt | 2.6/2.8/2.8V (Typ.)(IOVCC/VCC/VCI) |
| Applikatioun | MPH |
