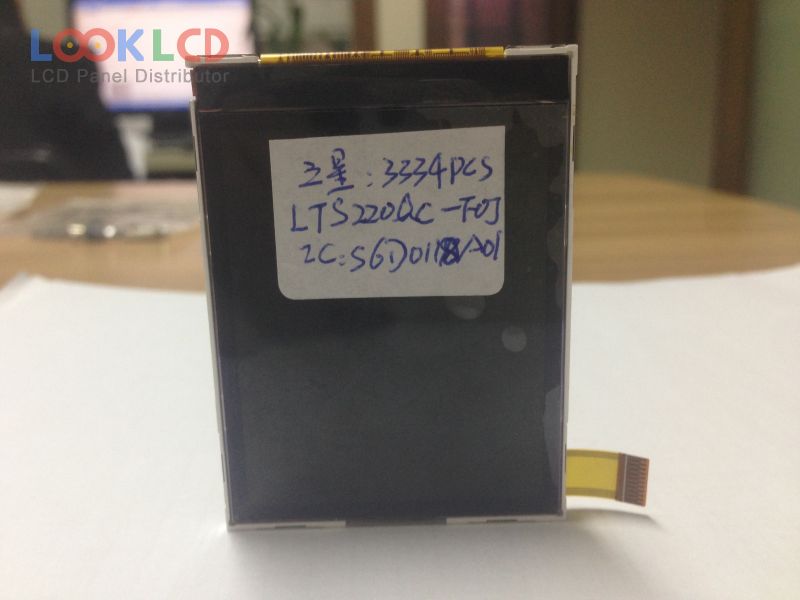

| Part Number | LTS220QC-F0J |
| Mark | Samsung |
| Gréisst | 2.2 |
| Applikatioun | MPH |
| Opléisung | 176×220 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 200:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | CPU |
| Panel Mark | SAMSUNG |
| Panel Modell | LTS220QC-F0J |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 2.2 inch |
| Resolutioun | 176(RGB)×220 , QCIF+ |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 34.848×43.56 mm |
| skizzéieren | 40.6×54.36×2.7 mm |
| Uewerfläch | |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 200:1 (Typ.)(Transmissive) |
| weisen Faarwen | 262K (6-bit), CIE193143% |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/45/20 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1S3PWLEDWithout Driver |
| Signal Interface | CPU, 21 pins |
| Input Volt | 2.8/2.8V (Typ.)(VCC/VCI) |
| Applikatioun | MPH |
