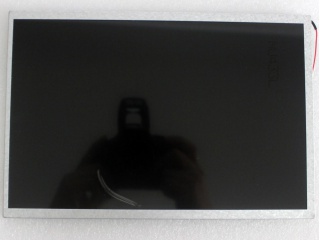

| Part Number | AM-1280800NGTZQW-17H |
| Mark | AMPIRE |
| Gréisst | 10.1 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1280×800 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | 7S6P |
| Interface | LVDS |
| Panel Mark | AMPIRE |
| Panel Gréisst | 10.1" |
| Resolutioun | 1280(RGB)×800, WXGA, 149PPI |
| Affichage Beräich | 216.96(W)×135.6(H) mm |
| Kontur Gréisst | 231(W)×154.4(H) ×6.2(D) mm |
| Hellegkeet | 1500 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 16.7M 45% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | TBD |
| Signal Interface | LVDS (1 ch, 8-bit) , 40 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Panel Modell | AM-1280800NGTZQW-17H |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 220.76(W)×140.4(H) mm |
| Uewerfläch | Hard coating |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Display Modus | IPS, Normally Black, Transmissive |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Lampe Typ | 7S6P WLED , 50K hours , Without Driver |
| Touchscreens | Without |
| Applikatioun | Industrial Outdoor High Brightness |
