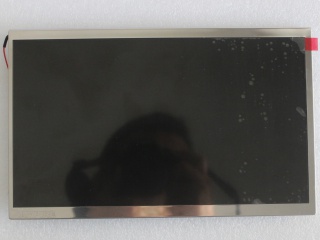

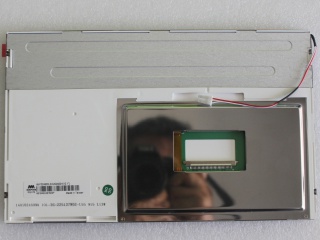

| Part Number | AM-1024600L3HMQW-00H |
| Mark | AMPIRE |
| Gréisst | 10.1 |
| Applikatioun | Industrial Automotiv |
| Opléisung | 1024×600 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Mark | AMPIRE |
| Modell | AM-1024600L3HMQW-00H |
| diagonal Gréisst | 10.1 inch |
| Typ | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×600 [WSVGA] 117PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 222.72(H)×125.28(V) mm |
| kontur dim. | 235(H)×145.8(V) ×8.85(D) mm |
| bezel Beräich | - |
| Behandlung | Antiglare |
| luminance | 550 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Vue Richtung | - |
| Äntwert Zäit | 4/12 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/70/50 (Typ.)(CR≥10) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Ënnerstëtzung Faarf | 262K 47% NTSC |
| Liichtquell | WLED [6S6P] , 30K hours , With LED Driver |
| Gewiicht | TBD |
| entworf fir | Industrial Automotive Display |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Interface Typ | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
