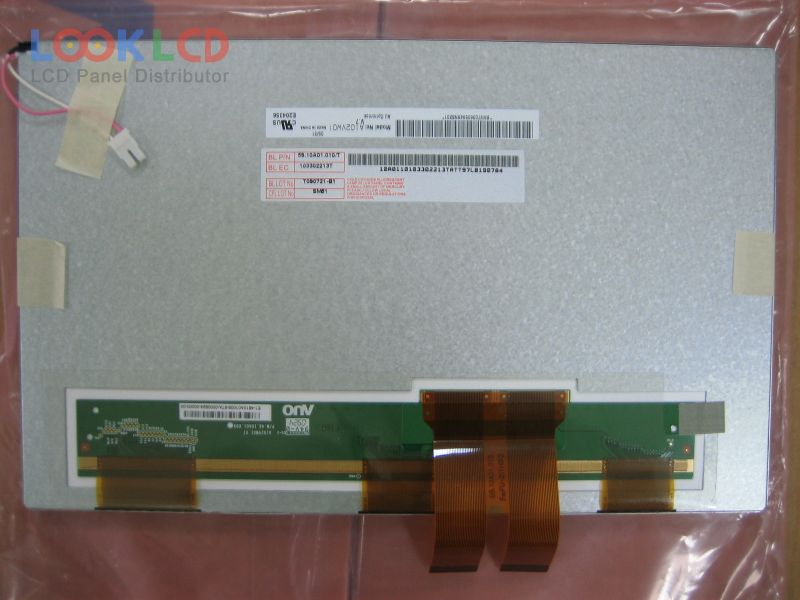

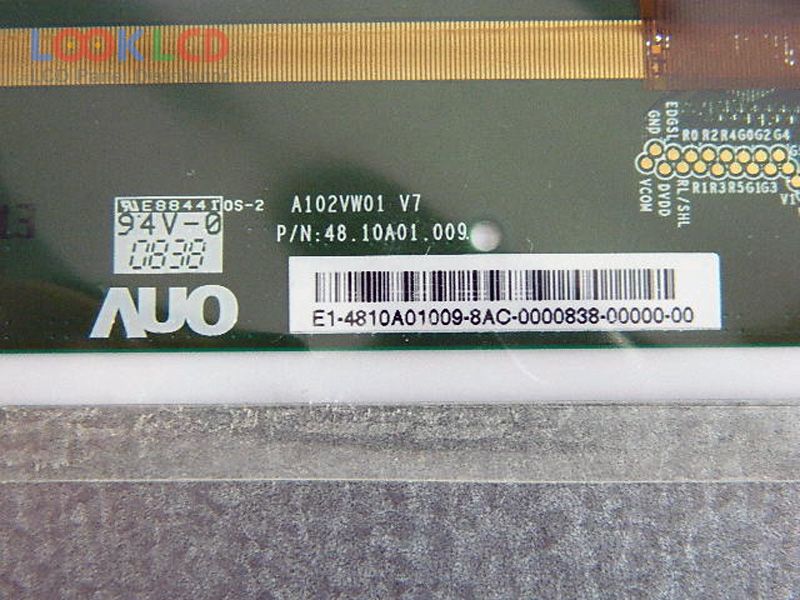

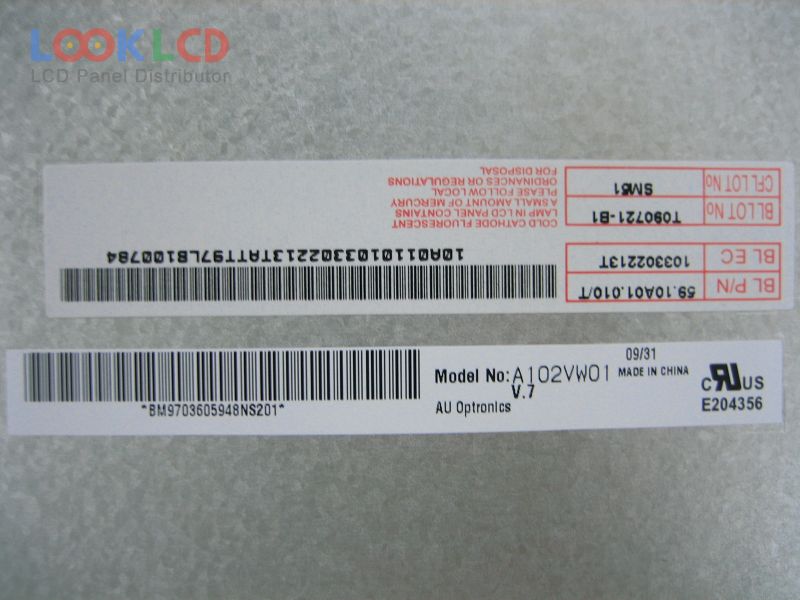

| Part Number | A102VW01 V7 |
| Mark | AUO |
| Gréisst | 10.2 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | AUO |
| Panel Modell | A102VW01 V7 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.2 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 222×133.2 mm |
| skizzéieren | 235×145.9 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 12/18 (Typ.)(Tr/Td) |
| Vue Wénkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| Input Volt | 3.3/8.8/15/-7.0/3.6V (Typ.)(VCC/AVDD/VGH/VGL/VCOM) |
| Applikatioun | CNS |
