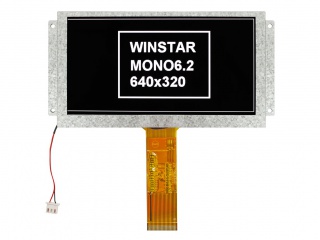

| Part Number | WF62ATXGRDNN0 |
| Mark | Winstar |
| Gréisst | 6.2 |
| Applikatioun | Industrial |
| Opléisung | 640×320 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | Grayscale |
| Géigeliicht | WLED , No Driver |
| Interface | 8-bit |
| Fabrikant beschwéiert | Winstar |
| Modell Numm | WF62ATXGRDNN0 |
| Écran Gréisst | 6.2 inch |
| Écran Typ | LCM , a-Si TFT-LCD |
| Pixel Zuel | 640×320 116PPI |
| Arrangement | Rectangle |
| aktiv Beräich (mm) | 140 × 70 (H×V) |
| Kontur (mm) | 170.32 × 83.3 × 5.6 (H×V×D) |
| Bezel Beräich (mm) | 141.6 × 73.4 (H×V) |
| Behandlung | Glare (Haze 0%) |
| luminance | 600 cd/m² (Typ.) |
| Kontrast Verhältnis | 800 : 1 (Typ.) (TM) |
| Vue Wénkel | - |
| Äntwert | - |
| gutt Vue op | Symmetry |
| Aarbecht Modus | VA, Normally Black, Transmissive |
| Faarfdéift | Grayscale |
| mass | - |
| benotzt fir | Industrial |
| Erfrëschungsrate | - |
| touchscreen | Without |
| Signal Typ | 8-bit 6800/8080 parallel, 3/4-wire SPI , 22 pins FPC |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AT062TN12 | Innolux | 6.2 | |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| HSD062IDW1-A00 | HannStar | 6.2 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
