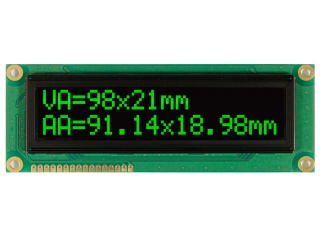

| Part Number | WEH001602HG |
| Mark | Winstar |
| Gréisst | 3.7 |
| Applikatioun | Instruments & Me |
| Opléisung | 5×8 |
| Zesummesetzung | OLED, PM-OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Green) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Fabrikant beschwéiert | Winstar |
| Modell Numm | WEH001602HG |
| Écran Gréisst | 3.7 inch |
| Écran Typ | OLED, PM-OLED |
| char Zuel | 16 characters × 2 lines 4PPI |
| char format | 5×8 dots |
| Char Pitch (mm) | 5.76×10.08 (H×V) |
| Char Gréisst (mm) | 4.74×8.9 (H×V) |
| aktiv Beräich (mm) | 91.14 × 18.98 (H×V) |
| Kontur (mm) | 122 × 44 × 10 (H×V×D) |
| Bezel Beräich (mm) | 98 × 21 (H×V) |
| Behandlung | - |
| Vue Wénkel | - |
| Äntwert | - |
| gutt Vue op | Symmetry |
| Aarbecht Modus | - |
| Faarfdéift | Mono(Green) |
| mass | - |
| benotzt fir | Instruments & Meters |
| Erfrëschungsrate | - |
| touchscreen | Without |
| Chauffer ic Lëscht | Built-in COB WS0010 |
| Signal Typ | CPU/SPI , Pad 16 pins |
| Spannungsversuergung | 5.0V (Typ.) |
