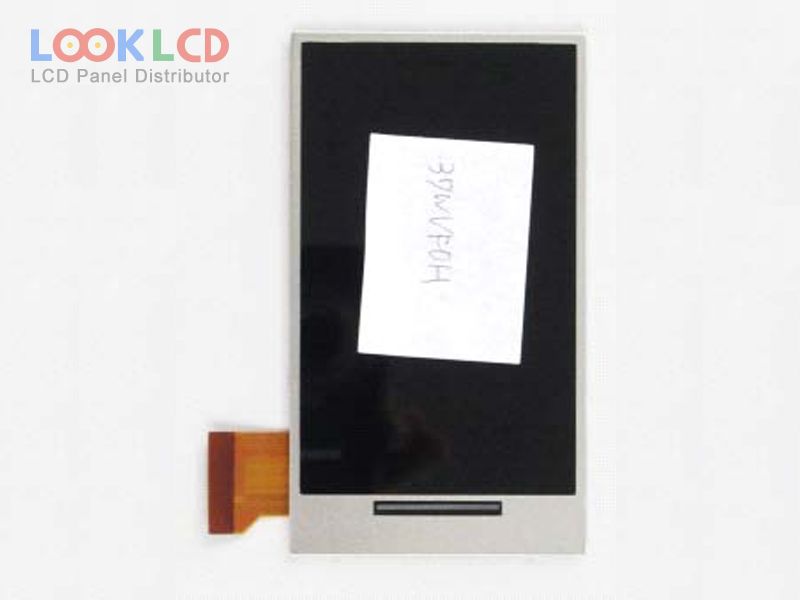

| Part Number | 37WVF0H |
| Mark | SII |
| Gréisst | 3.7 |
| Applikatioun | PND |
| Opléisung | 480×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SII |
| Panel Modell | 37WVF0H |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 3.7 inch |
| Resolutioun | 480(RGB)×800 , WVGA |
| Display Modus | FFS, Normally Black, Transmissive |
| aktiv Beräich | 48.24×80.4 mm |
| skizzéieren | 53.84×95.1 mm |
| Uewerfläch | Clear, Hard coating |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + Dithering), CIE193169% |
| Äntwert Zäit | |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 6S1PWLED |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit) + SPI, 61 pins |
| Applikatioun | PND |
