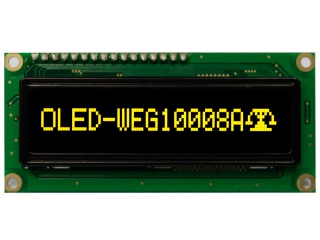

| Part Number | WEG010008AL |
| Mark | Winstar |
| Gréisst | 2.4 |
| Applikatioun | Instruments & Me |
| Opléisung | 100×8 |
| Zesummesetzung | OLED, PM-OLED |
| Hellegkeet | |
| CR | |
| Faarwen | Mono(Yellow) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Fabrikant beschwéiert | Winstar |
| Modell Numm | WEG010008AL |
| Écran Gréisst | 2.4 inch |
| Écran Typ | OLED, PM-OLED |
| Pixel Zuel | 100×8 42PPI |
| Arrangement | Rectangle |
| aktiv Beräich (mm) | 59.95 × 6.35 (H×V) |
| Kontur (mm) | 80 × 36 × 10 (H×V×D) |
| Bezel Beräich (mm) | 66.0 × 16.0 (H×V) |
| Behandlung | - |
| Vue Wénkel | - |
| Äntwert | - |
| gutt Vue op | Symmetry |
| Aarbecht Modus | - |
| Faarfdéift | Mono(Yellow) |
| mass | - |
| benotzt fir | Instruments & Meters |
| Erfrëschungsrate | - |
| touchscreen | Without |
| Chauffer ic Lëscht | Built-in COB WS0010 |
| Signal Typ | CPU/SPI , Pad 16 pins |
| Spannungsversuergung | 5.0V (Typ.) |
