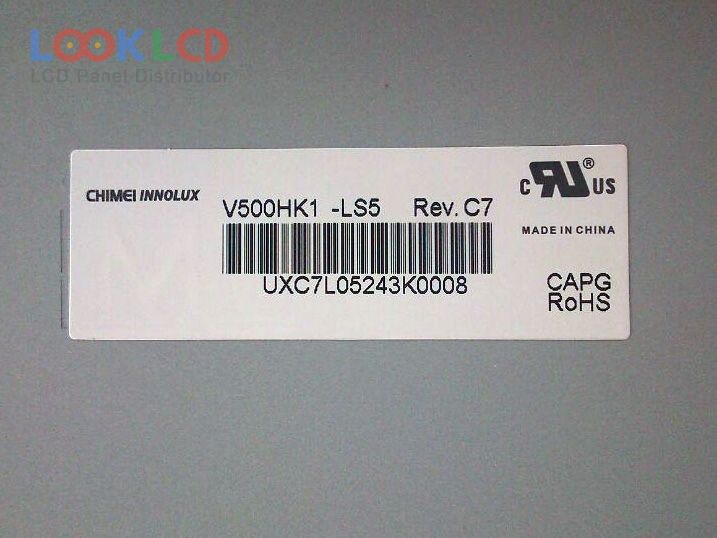

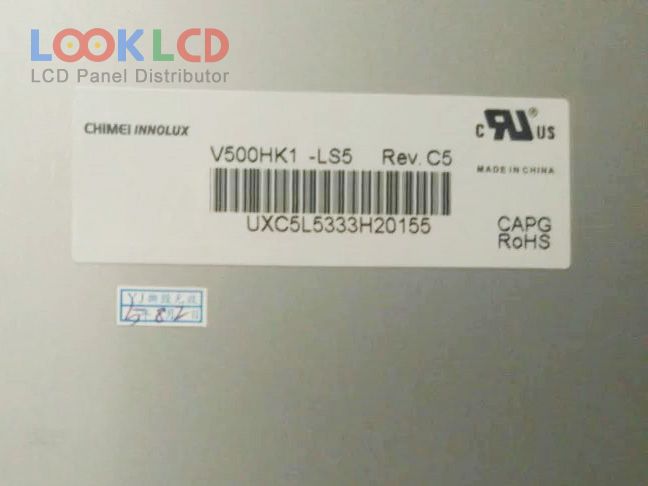

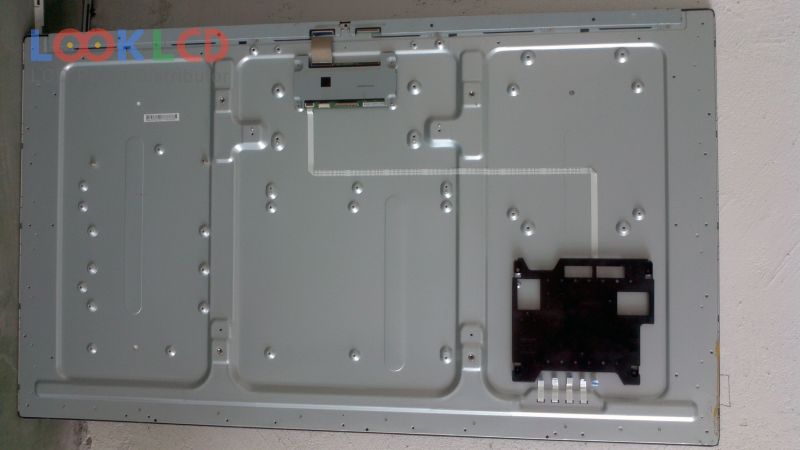

| Part Number | V500HK1-LS5 |
| Mark | Innolux |
| Gréisst | 50 |
| Applikatioun | LCTV |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 5000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | V500HK1-LS5 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 50 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | Super MVA, Normally Black, Transmissive |
| aktiv Beräich | 1095.84×616.41 mm |
| skizzéieren | 1122.64×645.31×25 mm |
| Uewerfläch | Antiglare (Haze 3.5%) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 5000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 6.5 (Typ.)(G to G) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| Frequenz | 120Hz (60Hz Input) |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit), 61 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
