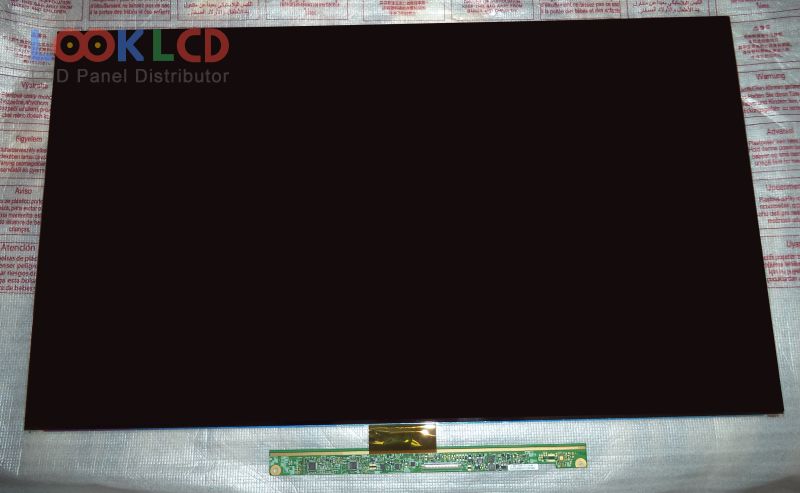

T320XVN02.A CELL

T320XVN02.A CELL
T320XVN02.A CELL
T320XVN02.A CELL
T320XVN02.A CELL thumb T320XVN02.A CELL thumb T320XVN02.A CELL thumb
Mark
AUO
Gréisst
31.5
Applikatioun
LCTV
Opléisung
1366×768
Zesummesetzung
CELL
Hellegkeet
0
CR
3000:1
Faarwen
16.7M
Backlight
No B/L
Interface
LVDS
In Stock
8728
Spezifikatioune

Part Number T320XVN02.A CELL
MarkAUO
Gréisst31.5
ApplikatiounLCTV
Opléisung1366×768
ZesummesetzungCELL
Hellegkeet0
CR3000:1
Faarwen16.7M
GéigeliichtNo B/L
InterfaceLVDS
Panel MarkAUO
Panel ModellT320XVN02.A CELL
Panel Typ a-Si TFT-LCD , CELL
Panel Gréisst31.5 inch
Resolutioun1366×768(RGB) , WXGA
Display ModusAMVA, Normally Black, Transmissive
aktiv Beräich697.685×392.256 mm
skizzéieren713.68×408.72 mm
UewerflächAntiglare, Hard coating (3H)
Glas Déift0.50+0.50 mm
transmissivitéit6.8% (Typ.)(with Polarizer)
Kontrast Verhältnis3000:1 (Typ.)
weisen Faarwen16.7M (8-bit)
Äntwert Zäit6.5 (Typ.)(G to G)
Vue Wénkel89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Signal InterfaceLVDS (1 ch, 8-bit), 30 pins
Input Volt12.0V (Typ.)
ApplikatiounLCTV
