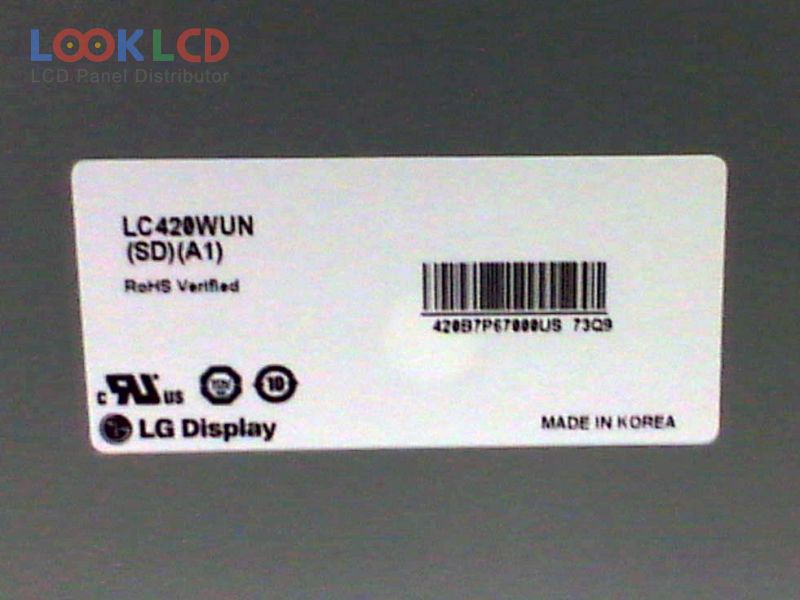

| Part Number | LC420WUN-SDA1 |
| Mark | LG Display |
| Gréisst | 42 |
| Applikatioun | LCTV |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 1200:1 |
| Faarwen | 16.7M/1.06B |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LC420WUN-SDA1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 42 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | S-IPS, Normally Black, Transmissive |
| aktiv Beräich | 930.24×523.26 mm |
| skizzéieren | 956.4×549.4×54.5 mm, Videowall Seam 26.2 mm |
| Uewerfläch | Antiglare (Haze 10%), Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1200:1 (Typ.) |
| weisen Faarwen | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193171% |
| Äntwert Zäit | 9 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | CCFLEmbedded (Inverter) |
| Signal Interface | LVDS (2 ch, 8/10-bit), 51 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | LCTV |
