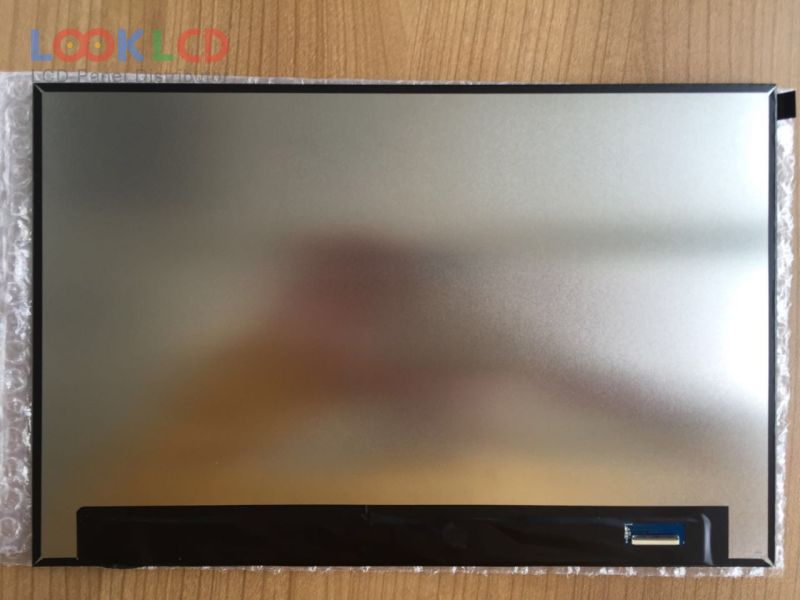

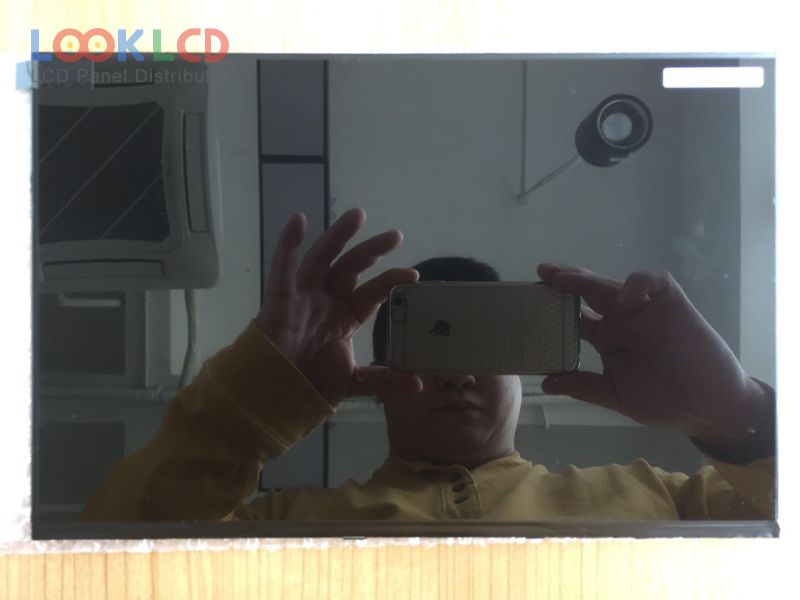

| Part Number | TV122WXM-NW0 |
| Mark | BOE |
| Gréisst | 12.2 |
| Applikatioun | NBPC |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | BOE |
| Panel Modell | TV122WXM-NW0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.2 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | ADS, Normally Black, Transmissive |
| aktiv Beräich | 262.565×164.16 mm |
| skizzéieren | 271.06×176.42×2.86 mm |
| Uewerfläch | |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | eDP (2 Lanes), 39 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| TV122WXM-NW0 | BOE | 12.2 | 1280×800 |
| TX31D16VM2BAA | KOE | 12.2 | 1024×310 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| LP140WH1-TLD2 | LG Display | 14.0 | 1366×768 |
| LTN133AT17-W01 | Samsung | 13.3 | 1366×768 |
| LTN133AT27-102 | Samsung | 13.3 | 1366×768 |
| LTN140AT20-401 | Samsung | 14.0 | 1366×768 |
| LTN156AT35-W01 | Samsung | 15.6 | 1366×768 |
| LTN160AT04-N01 | Samsung | 16.0 | 1366×768 |
| N101BGE-L21 | Innolux | 10.1 | 1366×768 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
