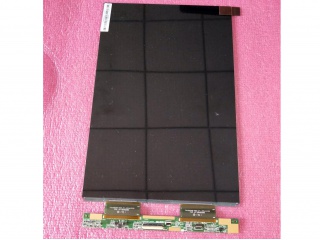

| Part Number | TV106WAB-NS0 |
| Mark | BOE |
| Gréisst | 10.6 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1280×1920 |
| Zesummesetzung | a-Si TFT-LCD, CELL |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | No |
| Interface | |
| Mark | BOE |
| Modell | TV106WAB-NS0 |
| diagonal Gréisst | 10.6 inch |
| Typ | a-Si TFT-LCD, CELL |
| Pixel Format | 1280(RGB)×1920 218PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 148.992(H)×223.488(V) mm |
| kontur dim. | 153.392(H)×232.688(V) ×0.79(D) mm |
| bezel Beräich | - |
| Behandlung | Hard coating (3H) |
| luminance | 0 cd/m² |
| Kontrast Verhältnis | 900:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | ADS, Normally Black, Transmissive |
| Plackedicke | 0.25+0.25 mm |
| Iwwerdroung | - |
| Ënnerstëtzung Faarf | 16.7M 71% NTSC |
| Liichtquell | No B/L , W/O Driver |
| Gewiicht | 62.0g (Max.) |
| entworf fir | Pad & Tablet |
| Frame Taux | 60Hz |
| Touch Panel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| AA106TA01 | Mitsubishi | 10.6 | 1280×768 |
| LQ106K1LA02 | SHARP | 10.6 | 1280×768 |
| LQ106K1LA05 | SHARP | 10.6 | 1280×768 |
| LTD106EWNN | TOSHIBA | 10.6 | 1280×768 |
| LTD106EXXF | TOSHIBA | 10.6 | 1280×768 |
| LTL106AL01-001 | Samsung | 10.6 | 1366×768 |
| LTL106AL01-002 | Samsung | 10.6 | 1366×768 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| NL12876AC18-03 | NLT | 10.6 | 1280×768 |
| NL12876AC18-03D | NLT | 10.6 | 1280×768 |
