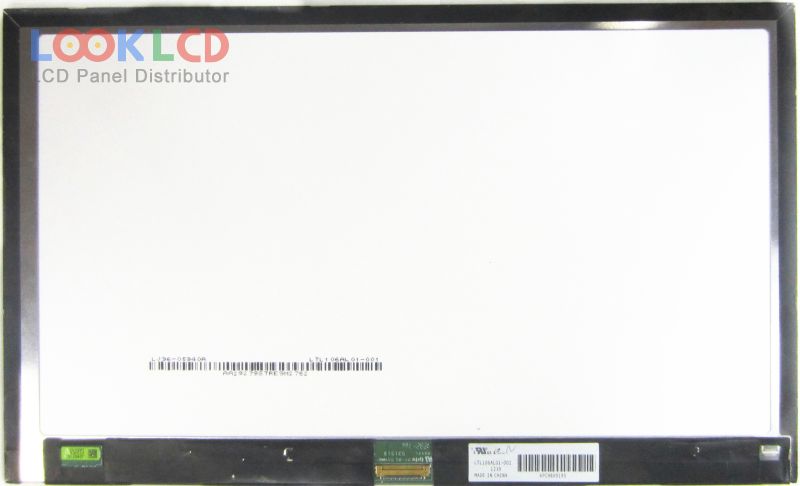

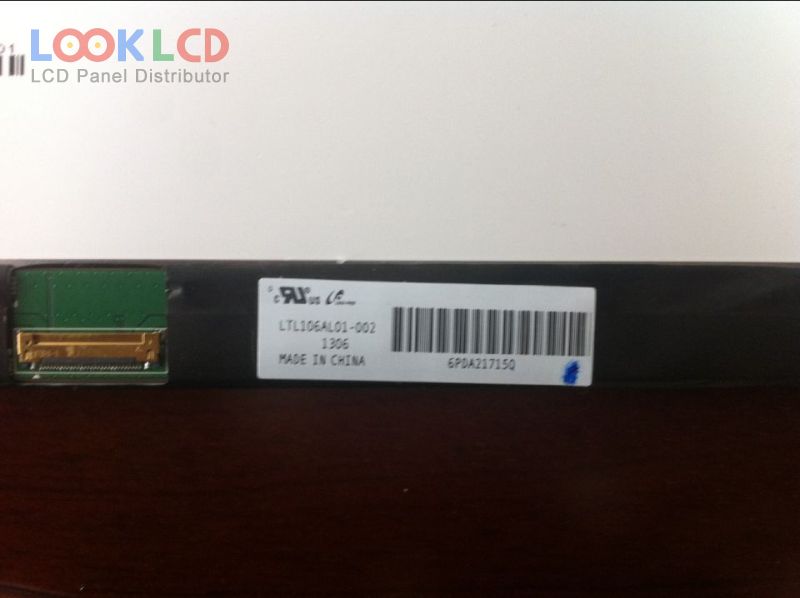

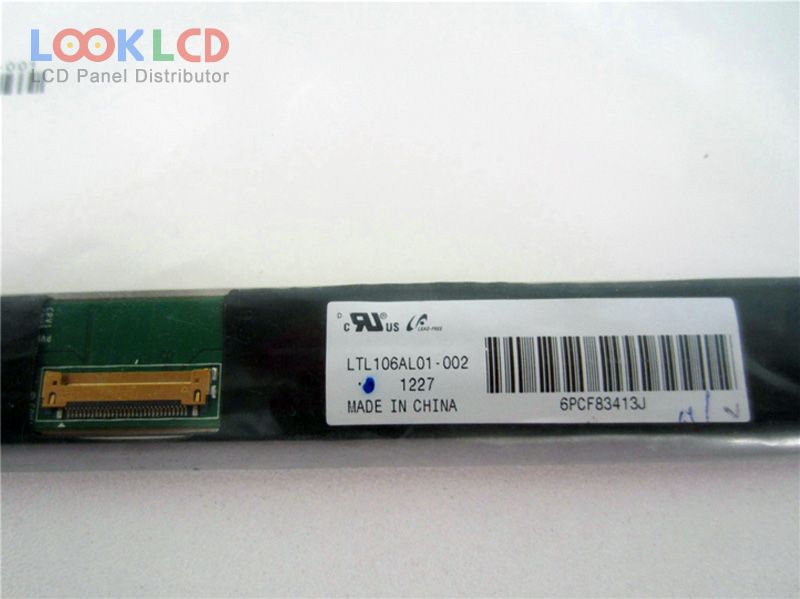

| Part Number | LTL106AL01-002 |
| Mark | Samsung |
| Gréisst | 10.6 |
| Applikatioun | PAD |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTL106AL01-002 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | PLS, Normally Black, Transmissive |
| aktiv Beräich | 234.72×132.03 mm |
| skizzéieren | 246.52×149.02×5.2 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (2H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
