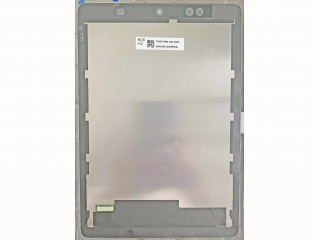

| Part Number | TV097FMM-LB0-1SP0 |
| Mark | BOE |
| Gréisst | 9.7 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1280×1752 |
| Zesummesetzung | a-Si TFT-LCD , Assem |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Mark | BOE |
| diagonal Gréisst | 9.7 inch |
| Pixel Format | 1280(RGB)×1752 223PPI |
| aktiv Beräich | 145.344(H)×198.94(V) mm |
| bezel Beräich | - |
| luminance | 320 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 70% NTSC |
| Gewiicht | 115g (Max.) |
| Frame Taux | 60Hz |
| Interface Typ | MIPI (4 data lanes) , 45 pins Connector |
| Stroumversuergung | 1.8/5.7/-5.7V (Typ.)(VDD/AVDD/AVEE) |
| Ëmwelt | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| Modell | TV097FMM-LB0-1SP0 |
| Typ | a-Si TFT-LCD , Assembly |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 150.344(H)×208.29(V) mm |
| Behandlung | Clear, Hard coating |
| Kontrast Verhältnis | 1200:1 (Typ.) (TM) |
| Äntwert Zäit | 35 (Max.)(G to G) |
| Betribssystemer Modus | - |
| Liichtquell | WLED [9S4P] , 15K hours , W/O Driver |
| entworf fir | Pad & Tablet |
| Touch Panel | In-Cell Touch |
