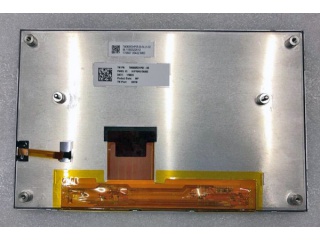

| Part Number | TM080RDHP07 |
| Mark | TIANMA |
| Gréisst | 8.0 |
| Applikatioun | Automotive Display |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Parallel |
| Mark | TIANMA |
| diagonal Gréisst | 8.0 inch |
| Pixel Format | 800(RGB)×480 [WVGA] 116PPI |
| aktiv Beräich | 174(H)×104.4(V) mm |
| bezel Beräich | 177(H)×107.4(V) mm |
| luminance | 600 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 71% NTSC |
| Gewiicht | TBD |
| Frame Taux | 60Hz |
| Interface Typ | Parallel RGB (1 ch, 8-bit) , 60 pins FPC |
| Stroumversuergung | 3.3/6.0/-6.0/17/-8V (Typ.)(VCC/VDDP/VDDN/VGH/VGL) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| Modell | TM080RDHP07 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 190.4(H)×120.7(V) ×16.1(D) mm |
| Behandlung | Antiglare |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 50 (Max.)(Tr+Td) |
| Betribssystemer Modus | SFT, Normally Black, Transmissive |
| Liichtquell | WLED [8S2P] , 20K hours , W/O Driver |
| entworf fir | Automotive Display |
| Touch Panel | Without |
