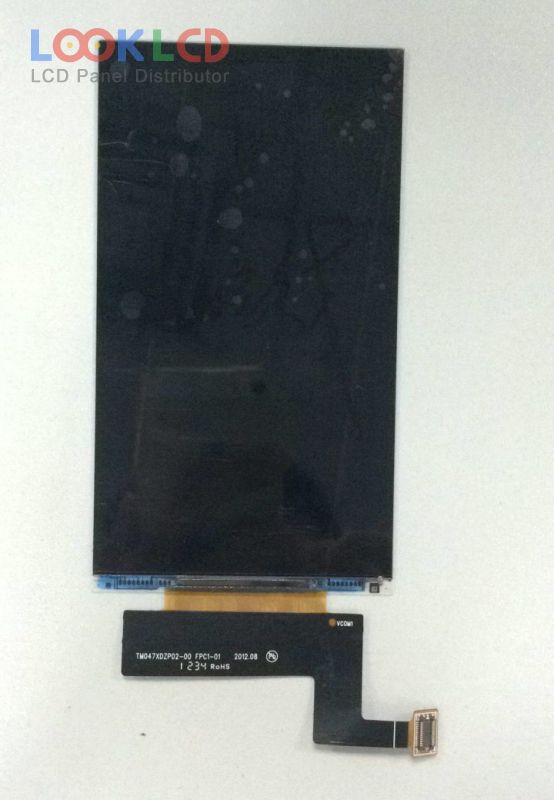

| Part Number | TM047XDZP02 |
| Mark | Tianma |
| Gréisst | 4.7 |
| Applikatioun | MPH |
| Opléisung | 540×960 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | TIANMA |
| Panel Modell | TM047XDZP02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 4.7 inch |
| Resolutioun | 540(RGB)×960 , qHD |
| Display Modus | SFT, Normally Black, Transmissive |
| aktiv Beräich | 58.32×103.68 mm |
| skizzéieren | 62.72×113.53×1.78 mm |
| Uewerfläch | |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 5S2PWLEDWithout Driver |
| Signal Interface | MIPI (2 data lanes), 24 pins |
| Input Volt | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| Applikatioun | MPH |
