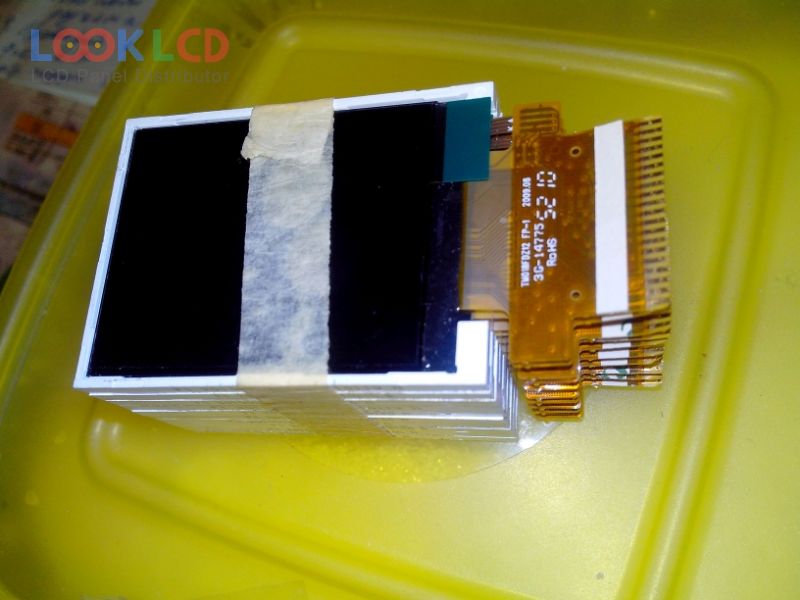

| Part Number | TM018FDZ12 |
| Mark | Tianma |
| Gréisst | 1.8 |
| Applikatioun | MPH |
| Opléisung | 128×160 |
| Zesummesetzung | LCM |
| Hellegkeet | 190 |
| CR | 350:1 |
| Faarwen | 65K/262K |
| Géigeliicht | WLED |
| Interface | CPU |
| Panel Mark | TIANMA |
| Panel Modell | TM018FDZ12 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 1.8 inch |
| Resolutioun | 128(RGB)×160 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 28.032×35.04 mm |
| skizzéieren | 34.7×45.83×2.85 mm |
| Uewerfläch | |
| Hellegkeet | 190 cd/m² (Min.) |
| Kontrast Verhältnis | 350:1 (Typ.) |
| weisen Faarwen | 65K/262K , CIE193154% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1S2PWLEDWithout Driver |
| Signal Interface | CPU, 20 pins |
| Input Volt | 2.8/2.8V (Typ.)(VDDI/VDD) |
| Applikatioun | MPH |
| ACX465AKM-7 | JDI | 5.9 | 1080×1920 |
| AMS347FF02 | Samsung | 3.5 | 360×640 |
| DX12D100VM0EAA | JDI | 4.7 | 720×1280 |
| H546DAN01.2 | AUO | 5.5 | 1080×1920 |
| LH400WV3-SD05 | LG Display | 4.0 | 480×800 |
| LQ047K3SX08 | SHARP | 4.7 | 720×1280 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| TFT240320-237-E | Other | 2.8 | 240×320 |
| TM024HBZ26 | Tianma | 2.4 | 240×320 |
