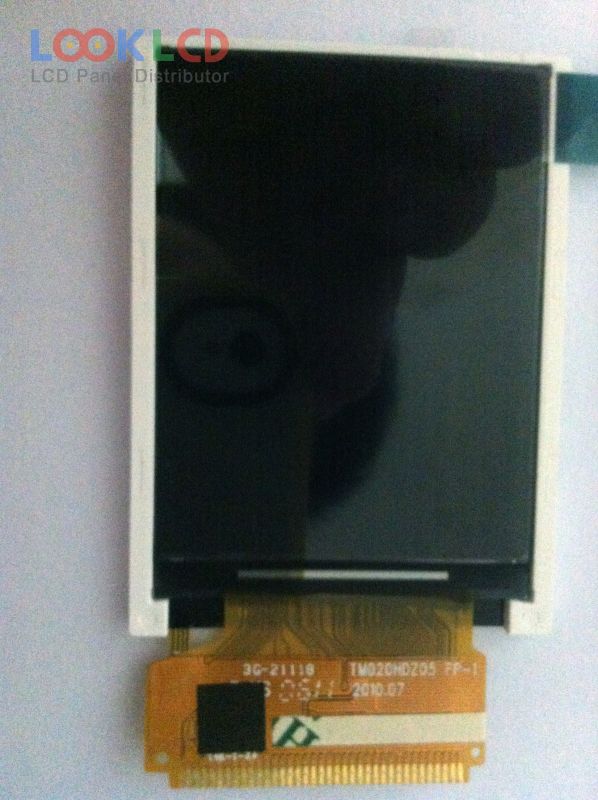

| Part Number | TM020HDZ05 |
| Mark | Tianma |
| Gréisst | 2.0 |
| Applikatioun | MPH |
| Opléisung | 240×320 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | 350:1 |
| Faarwen | 65K/262K |
| Géigeliicht | WLED |
| Interface | CPU |
| Panel Mark | TIANMA |
| Panel Modell | TM020HDZ05 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 2.0 inch |
| Resolutioun | 240(RGB)×320 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 30.24×40.32 mm |
| skizzéieren | 38.08×51.3 mm |
| Uewerfläch | |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | 350:1 (Typ.) |
| weisen Faarwen | 65K/262K , CIE193150% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 50/50/20/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1S3PWLEDWithout Driver |
| Signal Interface | CPU, 36 pins |
| Input Volt | 1.8/2.8V (Typ.)(VDD/VDDIO) |
| Applikatioun | MPH |
