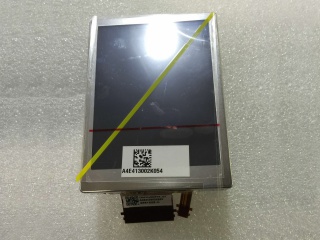

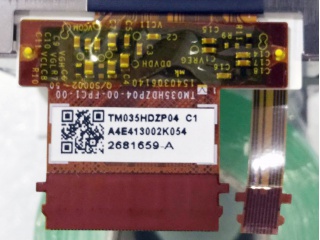

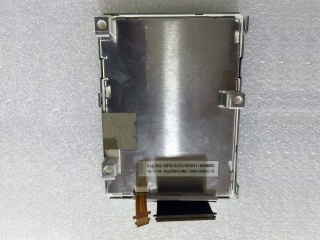

| Part Number | TM035HDZP04 |
| Mark | TIANMA |
| Gréisst | 3.5 |
| Applikatioun | Automotive Display |
| Opléisung | 240×320 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | |
| Panel Mark | TIANMA |
| Panel Gréisst | 3.5" |
| Resolutioun | 240(RGB)×320, QVGA, 114PPI |
| Affichage Beräich | 53.28(W)×71.04(H) mm |
| Hellegkeet | - |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10) |
| beschte Vue op | Symmetry |
| weisen Faarwen | 262K |
| Frequenz | 60Hz |
| Gewiicht | - |
| Panel Modell | TM035HDZP04 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 58.28(W)×74.04(H) mm |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Display Modus | SFT, Normally Black, Transmissive |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Lampe Typ | WLED , 10K hours , Without Driver |
| Touchscreens | - |
| Applikatioun | Automotive Display |
