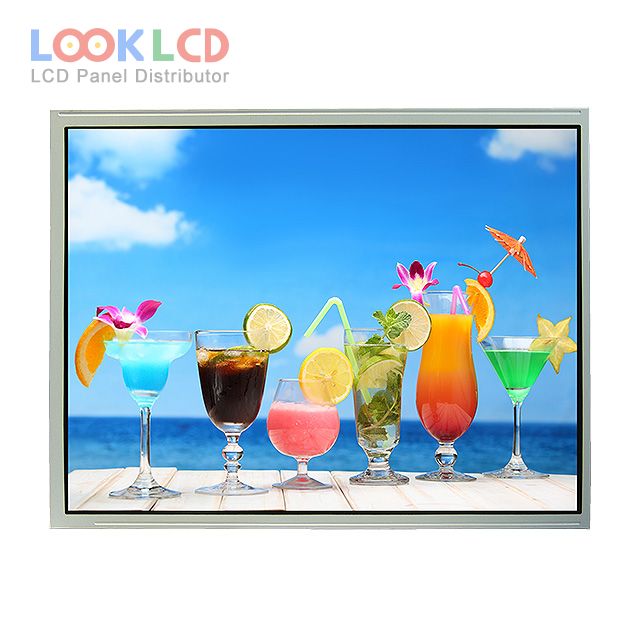

| Part Number | TCG121XGLPAPNN-AN20 |
| Mark | Kyocera |
| Gréisst | 12.1 |
| Applikatioun | IA |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 750:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | Kyocera |
| Panel Modell | TCG121XGLPAPNN-AN20 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | AWV, Normally Black, Transmissive |
| aktiv Beräich | 245.76×184.32 mm |
| skizzéieren | 260.5×203.4×10.8 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 750:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Äntwert Zäit | 18/12 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
