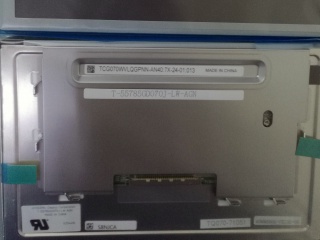

| Part Number | TCG070WVLQGPNN-AN40 |
| Mark | Kyocera |
| Gréisst | 7.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 800×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 750:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED , 70K hours , With LED Driver |
| Interface | LVDS |
| Fabrikant beschwéiert | Kyocera |
| Écran Gréisst | 7.0 inch |
| Pixel Zuel | 800(RGB)×480 (WVGA) 133PPI |
| aktiv Beräich (mm) | 152.4 × 91.44 (H×V) |
| Bezel Beräich (mm) | 154.4 × 93.4 (H×V) |
| luminance | 1000 cd/m² (Typ.) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 262K/16.2M 50% NTSC |
| mass | 230g |
| Erfrëschungsrate | 60Hz |
| Signal Typ | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Spannungsversuergung | 3.3V (Typ.) |
| max. Bewäertungen | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C |
| Modell Numm | TCG070WVLQGPNN-AN40 |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 169.8 × 109.7 × 9.7 (H×V×D) |
| Behandlung | Antiglare |
| Kontrast Verhältnis | 750 : 1 (Typ.) (TM) |
| Äntwert | 18/12 (Typ.)(Tr/Td) ms |
| Aarbecht Modus | AWV, Normally Black, Transmissive |
| benotzt fir | Industrial Outdoor High Brightness Automotive Display |
| touchscreen | Without |
