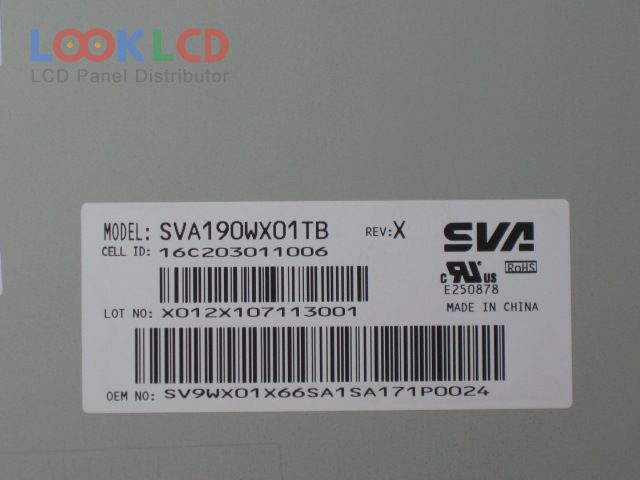

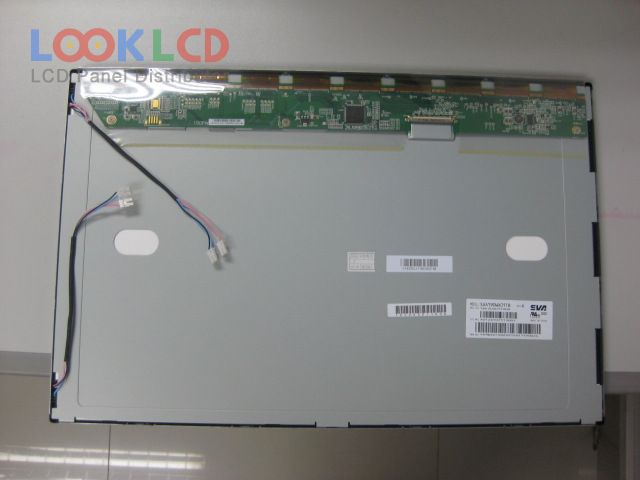

| Part Number | SVA190WX01TB |
| Mark | SVA-NEC |
| Gréisst | 19.0 |
| Applikatioun | DMPC |
| Opléisung | 1440×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 700:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SVA-NEC |
| Panel Modell | SVA190WX01TB |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 19.0 inch |
| Resolutioun | 1440(RGB)×900 , WXGA+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 408.24×255.15 mm |
| skizzéieren | 428×278×19 mm |
| Uewerfläch | |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
| AA190EA01 | Mitsubishi | 19.0 | 1280×1024 |
| FLC48SXC8V-11AA | Fujitsu | 19.0 | 1280×1024 |
| G190EAN01.0 | AUO | 19.0 | 1280×1024 |
| G190EG01 V1 | AUO | 19.0 | 1280×1024 |
| LTB190E1-L01 | Samsung | 19.0 | 1280×1024 |
| M190A1-L07 | Innolux | 19.0 | 1440×900 |
| M190E5-L0G | Innolux | 19.0 | 1280×1024 |
| SVA190WX01TB | SVA-NEC | 19.0 | 1440×900 |
| SVA190WX05TB | SVA-NEC | 19.0 | 1440×900 |
| TMS190WX1-05TB | Tianma | 19.0 | 1440×900 |
| LM151X3-C3C1 | LG Display | 15.1 | 1024×768 |
| LM215WF4-TLE1 | LG Display | 21.5 | 1920×1080 |
| LQ14D412 | SHARP | 13.8 | 640×480 |
| LTM190ET01 | Samsung | 19.0 | 1280×1024 |
| LTM200KT07 | Samsung | 20.0 | 1600×900 |
| LTM270DL02 | Samsung | 27.0 | 2560×1440 |
| LTM270DL06 | Samsung | 27.0 | 2560×1440 |
| MT190EN02 V.Y | Innolux | 19.0 | 1280×1024 |
| NL128102AC23-01 | NLT | 15.4 | 1280×1024 |
| P236MWF1 R0 | IVO | 23.6 | 1920×1080 |
