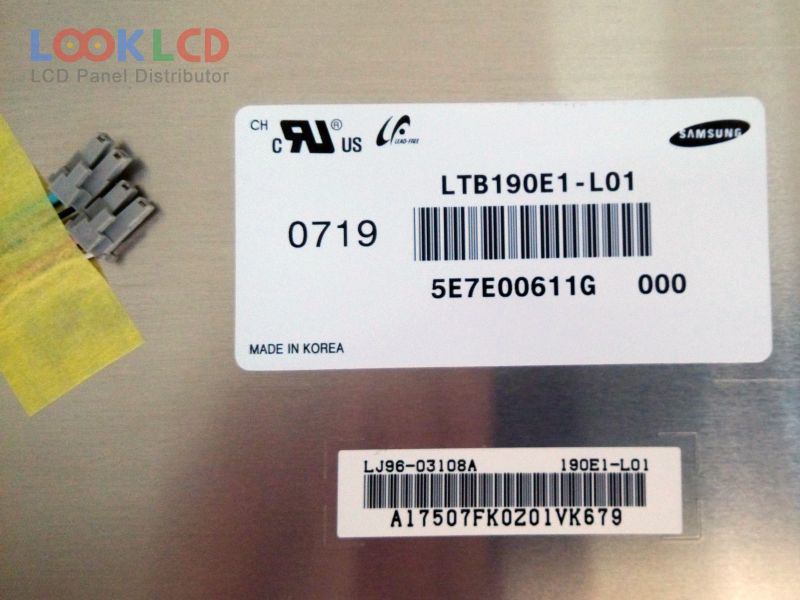

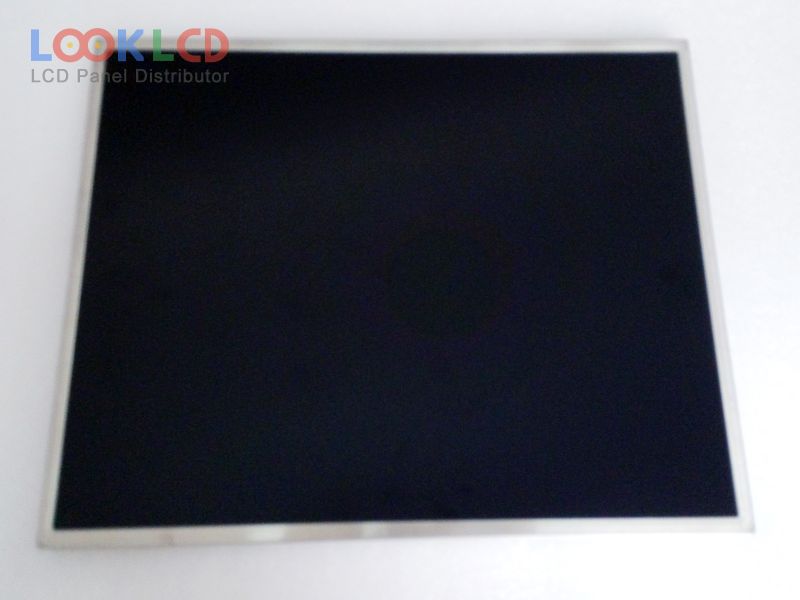

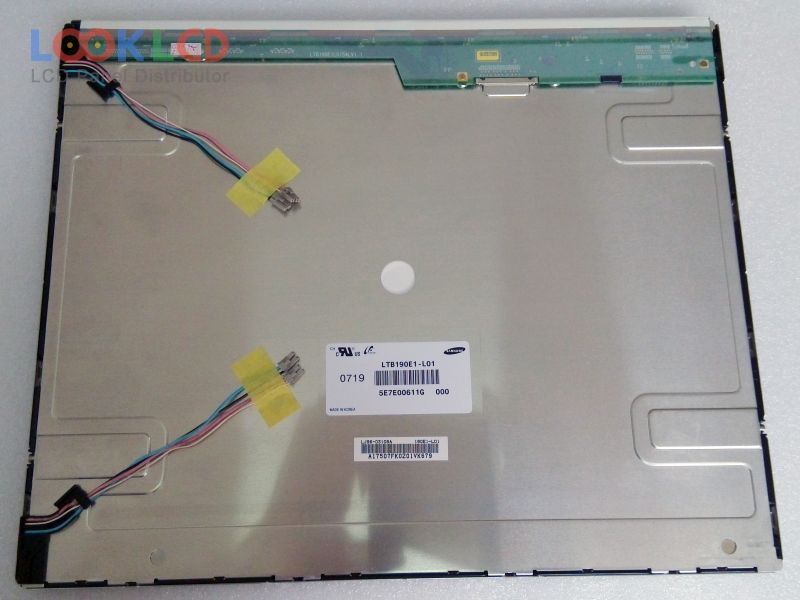

| Part Number | LTB190E1-L01 |
| Mark | Samsung |
| Gréisst | 19.0 |
| Applikatioun | IA |
| Opléisung | 1280×1024 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTB190E1-L01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 19.0 inch |
| Resolutioun | 1280(RGB)×1024 , SXGA |
| Display Modus | S-PVA, Normally Black, Transmissive |
| aktiv Beräich | 376.32×301.056 mm |
| skizzéieren | 396×324 mm |
| Uewerfläch | |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 90/90/90/90 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFL |
| Signal Interface | LVDS (2 ch, 8-bit) |
| Input Volt | 5.0V (Typ.) |
| rohs: | |
| Applikatioun | IA |
