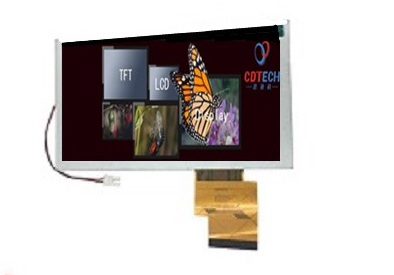

| Part Number | S062WV04 |
| Mark | CDTECH |
| Gréisst | 6.2 |
| Applikatioun | Industrial Automotiv |
| Opléisung | 800×480 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 600:1 |
| Faarwen | 16.7M |
| Géigeliicht | 3S9P WLED , 25K hours , No Driver |
| Interface | |
| Fabrikant beschwéiert | CDTECH |
| Écran Gréisst | 6.2 inch |
| Pixel Zuel | 800(RGB)×480 (WVGA) 150PPI |
| aktiv Beräich (mm) | 137.52 × 77.232 (H×V) |
| Bezel Beräich (mm) | 140.7 × 80.4 (H×V) |
| luminance | 600 (Typ.)(cd/m²) |
| Vue Wénkel | 65/65/55/65 (Typ.)(CR≥10) |
| gutt Vue op | - |
| Faarfdéift | 16.7M |
| mass | TBD |
| Erfrëschungsrate | 60Hz |
| Modell Numm | S062WV04 |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 155.2 × 88.2 × 3.7 (H×V×D) |
| Behandlung | - |
| Kontrast Verhältnis | 600 : 1 (Typ.) (TM) |
| Aarbecht Modus | TN, Normally White, Transmissive |
| Äntwert | 30/30 (Typ.)(Tr/Td) ms |
| benotzt fir | Industrial Automotive Display |
| touchscreen | Without |
| AT062TN12 | Innolux | 6.2 | |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| TM062RDS01 | Tianma | 6.2 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| TX16D11VM2CCA | KOE | 6.2 | 640×240 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
