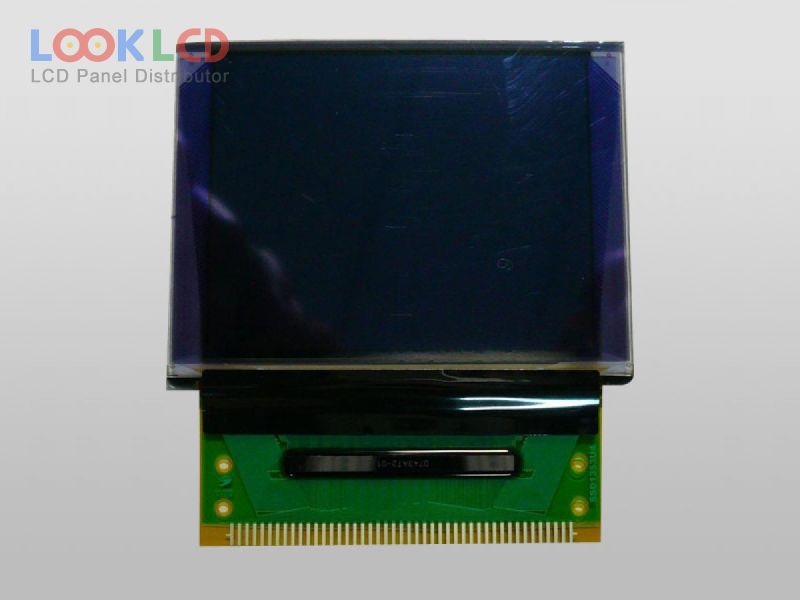

| Part Number | RGS18160128FH007 |
| Mark | RiTdisplay |
| Gréisst | 1.8 |
| Applikatioun | SW |
| Opléisung | 160×128 |
| Zesummesetzung | OLED |
| Hellegkeet | 90 |
| CR | 2000:1 |
| Faarwen | 65K/262K |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Panel Mark | RiTdisplay |
| Panel Modell | RGS18160128FH007 |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 1.8 inch |
| Resolutioun | 160(RGB)×128 |
| aktiv Beräich | 35.015×28.012 mm |
| skizzéieren | 42.7×33.4×2.19 mm |
| Uewerfläch | |
| Hellegkeet | 90 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000 : 1 (Min.) |
| weisen Faarwen | 65K/262K (6-bit) |
| Vue Wénkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequenz | 85Hz |
| Chauffeur ic | COF Built-in SSD1353 |
| Signal Interface | 8/9/16/18-bit 6800/8080 parallel, SPI, 45 pins |
| Input Volt | 17/2.8V (Typ.)(VCC/VCI) |
| Applikatioun | SW |
