Other OEL9M1007-W-E Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

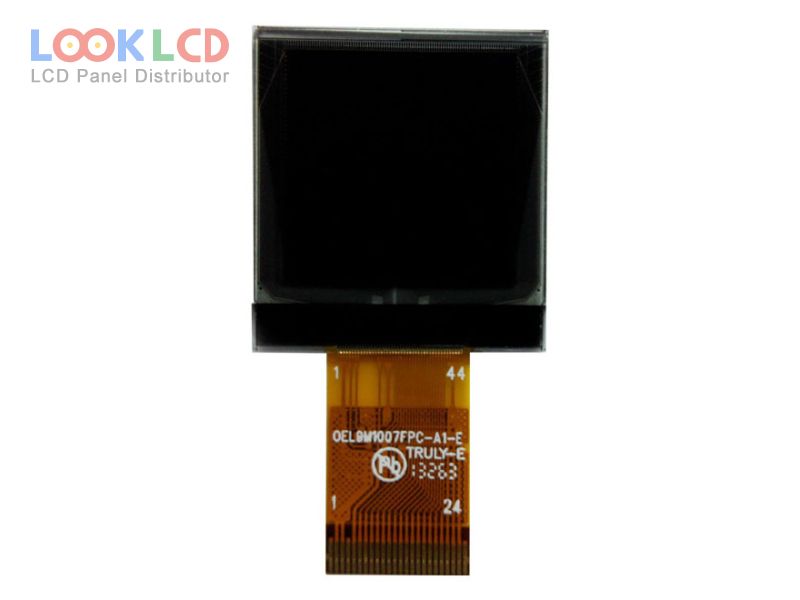

OEL9M1007-W-E

OEL9M1007-W-E
OEL9M1007-W-E thumb
Mark
Other
Gréisst
1.1
Applikatioun
SW
Opléisung
96×96
Zesummesetzung
OLED
Hellegkeet
100
CR
10000:1
Faarwen
Mono(White)
Backlight
self
Interface
CPU/SPI/I²C
In Stock
14153
Spezifikatioune

Part Number OEL9M1007-W-E
MarkOther
Gréisst1.1
ApplikatiounSW
Opléisung96×96
ZesummesetzungOLED
Hellegkeet100
CR10000:1
FaarwenMono(White)
Géigeliichtself
InterfaceCPU/SPI/I²C
Panel MarkTRULY
Panel ModellOEL9M1007-W-E
Panel Typ PM-OLED , OLED
Panel Gréisst1.1 inch
Resolutioun96×96
aktiv Beräich19.655×19.655 mm
skizzéieren25.49×29.1×1.55 mm
Uewerfläch
Hellegkeet100 cd/m² (Typ.)
Kontrast Verhältnis10000 : 1 (Min.)
weisen FaarwenMono(White) (1-bit)
Vue Wénkel80/80/80/80 (Min.)(L/R/U/D)
Frequenz100Hz
Chauffeur icCOG Built-in SH1107G
Signal Interface8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins
ApplikatiounSW
Famill Modell
OEL9M1003-L3-E Other 1.1 96×96
OEL9M1004-L4-E Other 1.5 128×128
OEL9M1007-B-E Other 1.1 96×96
OEL9M1007-R-E Other 1.1 96×96
OEL9M1007-W-E Other 1.1 96×96
OEL9M1007-Y-E Other 1.1 96×96
OEL9M1010-B-E Other 0.95 96×64
OEL9M1010-R-E Other 0.95 96×64
OEL9M1010-W-E Other 0.95 96×64
OEL9M1010-Y-E Other 0.95 96×64
