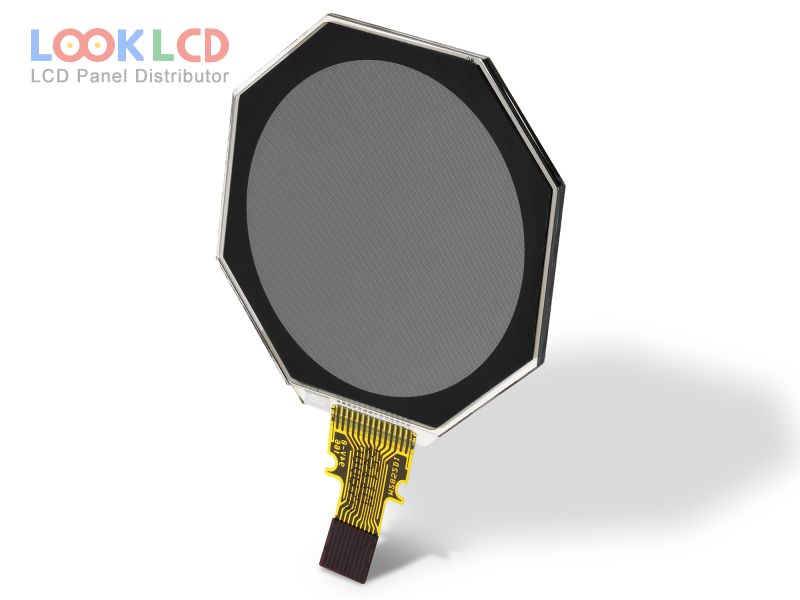

| Part Number | LS012B7DH02 |
| Mark | SHARP |
| Gréisst | 1.2 |
| Applikatioun | SW |
| Opléisung | 240×240 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | Monochrome |
| Géigeliicht | No B/L |
| Interface | SPI |
| Panel Mark | SHARP |
| Panel Modell | LS012B7DH02 |
| Panel Typ | CG-Silicon , LCM |
| Panel Gréisst | 1.2 inch |
| Resolutioun | 240×240 |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 30.48×30.48 mm |
| skizzéieren | 35.78×36.53 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | |
| Kontrast Verhältnis | 24:1 (Typ.)(Reflective) |
| weisen Faarwen | Monochrome (1-bit) |
| Äntwert Zäit | 10/20 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/60/60 (Min.)(CR≥3)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | No B/L |
| Signal Interface | SPI, 10 pins |
| Input Volt | 3.0/3.0V (Typ.)(VDD/VDDA) |
| Applikatioun | SW |
