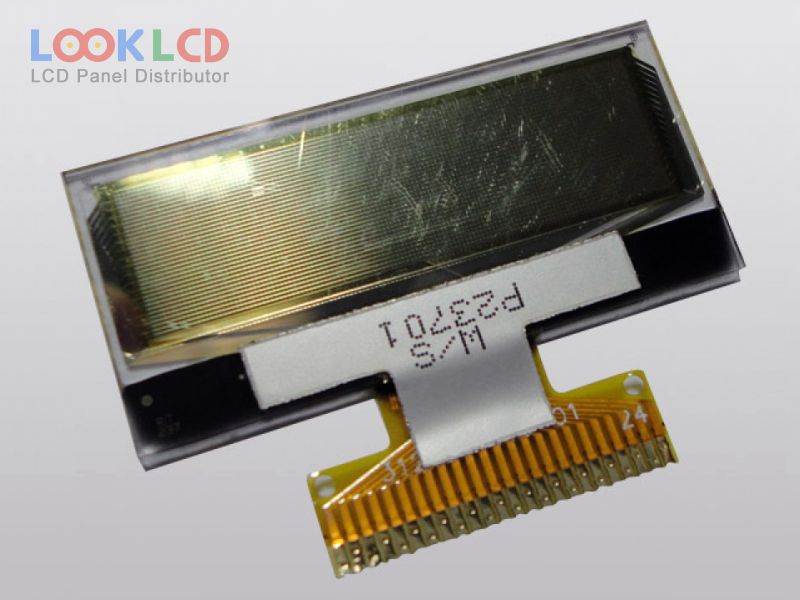

| Part Number | RGS11128036WR014 |
| Mark | RiTdisplay |
| Gréisst | 1.1 |
| Applikatioun | |
| Opléisung | 128×36 |
| Zesummesetzung | OLED |
| Hellegkeet | 600 |
| CR | 2000:1 |
| Faarwen | Mono(White) |
| Géigeliicht | self |
| Interface | CPU/SPI/I²C |
| Panel Mark | RiTdisplay |
| Panel Modell | RGS11128036WR014 |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 1.1 inch |
| Resolutioun | 128×36 |
| aktiv Beräich | 26.86×7.54 mm |
| skizzéieren | 31×14.3×1.1 mm |
| Uewerfläch | Without Polarizer |
| Hellegkeet | 600 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000 : 1 (Min.) |
| weisen Faarwen | Mono(White) (1-bit) |
| Vue Wénkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Frequenz | 105Hz |
| Chauffeur ic | COG Built-in SPD0301 |
| Signal Interface | 8-bit 6800/8080 parallel, SPI, I²C, 24 pins |
| Input Volt | 12.0V (Typ.)(VCC) |
