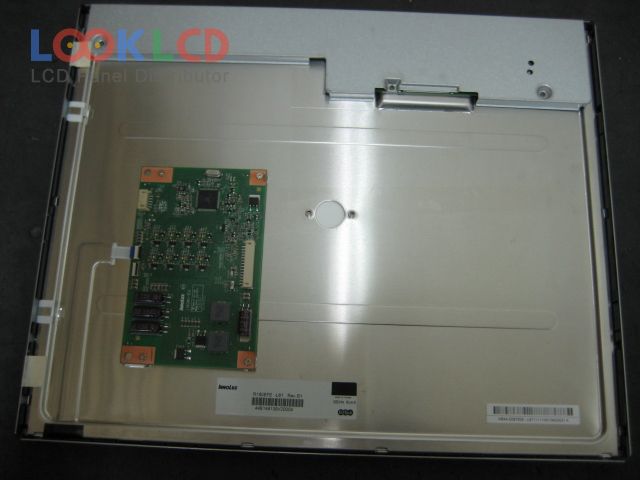

| Part Number | R190EFE-L61 |
| Mark | Innolux |
| Gréisst | 19.0 |
| Applikatioun | MD |
| Opléisung | 1280×1024 |
| Zesummesetzung | LCM |
| Hellegkeet | 650 |
| CR | 900:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | INNOLUX |
| Panel Modell | R190EFE-L61 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 19.0 inch |
| Resolutioun | 1280(RGB)×1024 , SXGA |
| Display Modus | DD-IPS, Normally Black, Transmissive |
| aktiv Beräich | 376.32×301.06 mm |
| skizzéieren | 396×324×20.7 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 650 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 15/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | MD |
