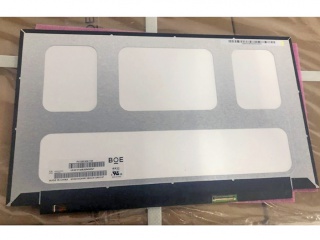

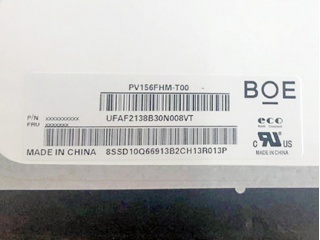

| Part Number | PV156FHM-T00 |
| Mark | BOE |
| Gréisst | 15.6 |
| Applikatioun | Industrial |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD, Assemb |
| Hellegkeet | |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Mark | BOE |
| Modell | PV156FHM-T00 (BOE083E) |
| diagonal Gréisst | 15.6 inch |
| Typ | a-Si TFT-LCD, Assembly |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuratioun | RGB Vertical Stripe |
| aktiv Beräich | 344.16(H)×193.59(V) mm |
| kontur dim. | 361(H)×223(V) mm |
| bezel Beräich | - |
| Behandlung | Antiglare, Hard coating (3H) |
| luminance | 400 cd/m² (Min.) |
| Kontrast Verhältnis | 800:1 (Typ.) (TM) |
| Vue Richtung | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Betribssystemer Modus | - |
| Ënnerstëtzung Faarf | 16.7M 45% NTSC |
| Liichtquell | WLED [11S4P] , 30K hours , With LED Driver |
| Gewiicht | 670g (Max.) |
| entworf fir | Industrial |
| Frame Taux | 60Hz |
| Touch Panel | On-Cell Touch |
| Interface Typ | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 40 pins Connector |
| Stroumversuergung | 3.3V (Typ.) |
| Ëmwelt | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
