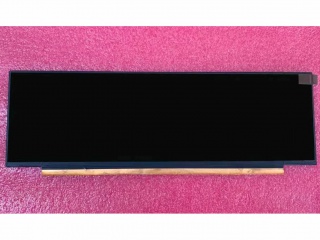

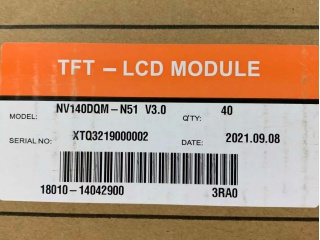

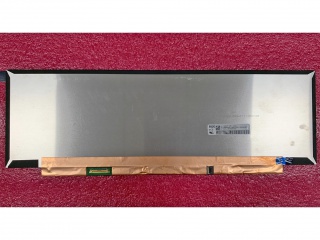

| Part Number | NV140DQM-N51 |
| Mark | BOE |
| Gréisst | 14.1 |
| Applikatioun | Laptop |
| Opléisung | 1920×550 |
| Zesummesetzung | a-Si TFT-LCD, LCM |
| Hellegkeet | |
| CR | 1200:1 |
| Faarwen | 16.7M |
| Géigeliicht | 10S6P |
| Interface | eDP |
| Panel Mark | BOE |
| Panel Modell | NV140DQM-N51 (BOE0922) |
| Panel Gréisst | 14.1" |
| Panel Typ | a-Si TFT-LCD, LCM |
| Resolutioun | 1920(RGB)×550, 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Affichage Beräich | 344.218(W)×98.604(H) mm |
| bezel Ouverture | - |
| Kontur Gréisst | 350.52(W)×118.65(H) ×2.5(D) mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1200:1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Display Modus | ADS, Normally Black, Transmissive |
| beschte Vue op | Symmetry |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| weisen Faarwen | 16.7M 100% sRGB |
| Lampe Typ | 10S6P WLED , 15K hours , With LED Driver |
| Frequenz | 60Hz |
| Touchscreens | Without |
| Form Stil | Slim (PCBA Flat, T≤3.2mm) |
| Applikatioun | Laptop |
| Signal Interface | eDP (2 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 30 pins Connector |
| Input Volt | 3.3V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C |
