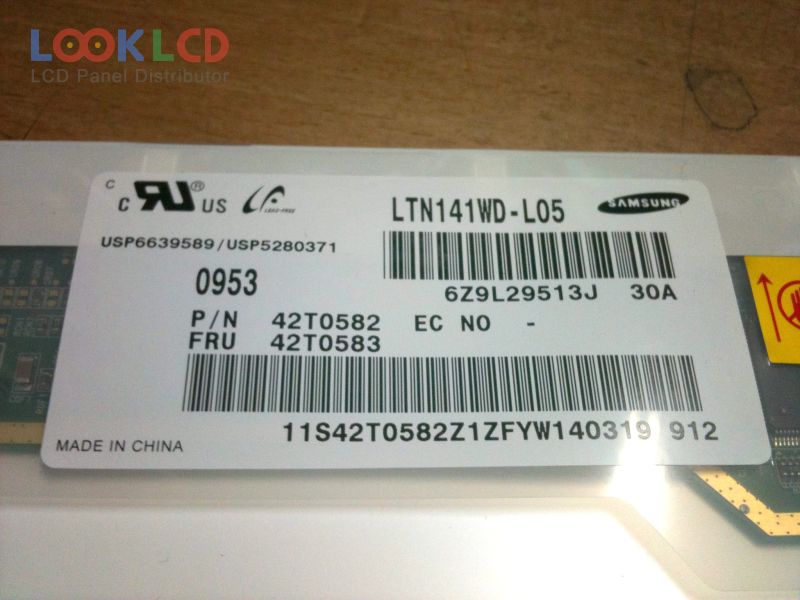

| Part Number | LTN141WD-L05 |
| Mark | Samsung |
| Gréisst | 14.1 |
| Applikatioun | NBPC |
| Opléisung | 1440×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN141WD-L05 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.1 inch |
| Resolutioun | 1440(RGB)×900 , WXGA+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 303.48×189.675 mm |
| skizzéieren | 319.5×205.5×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare (Haze 42%), Hard coating (2H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
