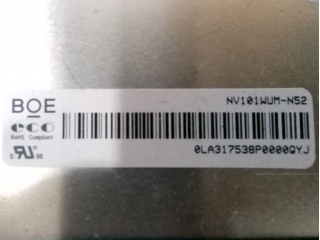

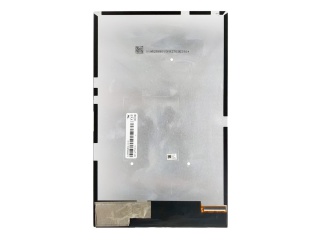

| Part Number | NV101WUM-N52 |
| Mark | BOE |
| Gréisst | 10.1 |
| Applikatioun | Pad & Tablet |
| Opléisung | 1200×1920 |
| Zesummesetzung | LCM , a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED , 15K hours , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | BOE |
| Écran Gréisst | 10.1 inch |
| Pixel Zuel | 1200(RGB)×1920 (WUXGA) 225PPI |
| aktiv Beräich (mm) | 135.36 × 216.576 (H×V) |
| luminance | 400 cd/m² (Typ.) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| gutt Vue op | Symmetry |
| Faarfdéift | 16.7M 68% NTSC |
| mass | 132g (Typ.) |
| Erfrëschungsrate | 60Hz |
| Signal Typ | MIPI (4 data lanes) , 42 pins Connector |
| Spannungsversuergung | 1.8/3.3V (Typ.)(VDD1/VDD3) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Modell Numm | NV101WUM-N52 |
| Écran Typ | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Kontur (mm) | 141.56 × 228.226 × 4.2 (H×V×D) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Äntwert | 35 (Max.)(Tr+Td) ms |
| Aarbecht Modus | ADS, Normally Black, Transmissive |
| benotzt fir | Pad & Tablet |
| touchscreen | Without |
