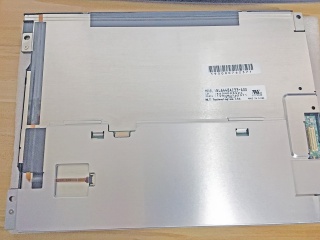

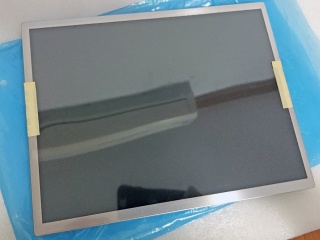

| Part Number | NL6448AC33-A0D |
| Mark | NLT |
| Gréisst | 10.4 |
| Applikatioun | Industrial |
| Opléisung | 640×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 900:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | CMOS |
| Panel Mark | NLT |
| Panel Gréisst | 10.4" |
| Resolutioun | 640(RGB)×480, VGA, 76PPI |
| Affichage Beräich | 211.2(W)×158.4(H) mm |
| Kontur Gréisst | 246.5(W)×179.4(H) ×10(D) mm |
| Hellegkeet | 500 cd/m² (Typ.) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| beschte Vue op | - |
| weisen Faarwen | 262K 40% NTSC |
| Frequenz | 60Hz |
| Panel Gewiicht | 390/435g (Typ./Max.) |
| Signal Interface | CMOS (1 ch, 6-bit) , 31 pins Connector |
| Input Volt | 3.3/5.0V (Typ.) |
| Ëmwelt | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| Panel Modell | NL6448AC33-A0D |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 900:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 3/15 (Typ.)(Tr/Td) |
| Lampe Typ | WLED , 100K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Industrial |
