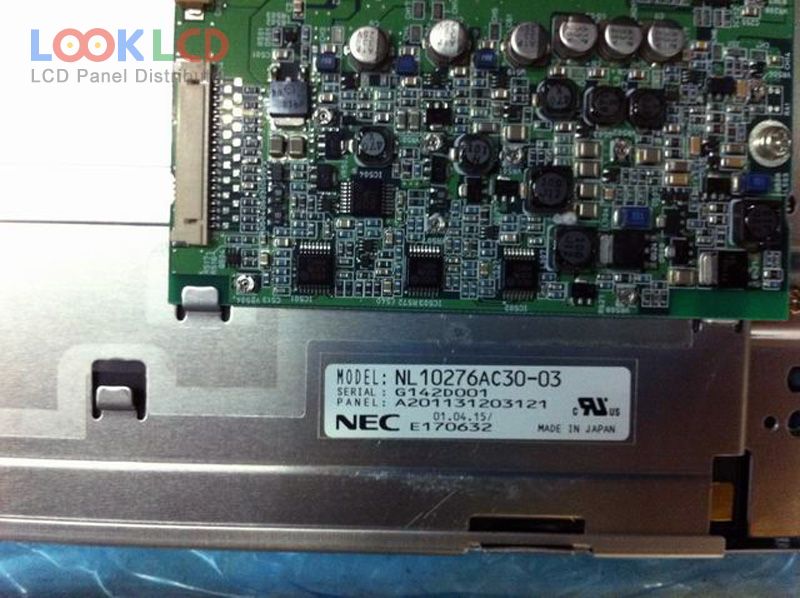

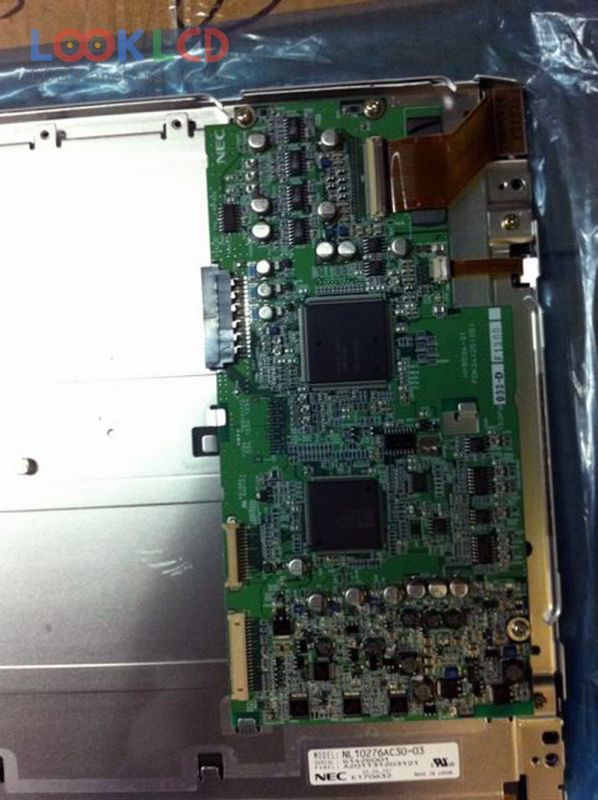

| Part Number | NL10276AC30-03 |
| Mark | NLT |
| Gréisst | 15.0 |
| Applikatioun | DMPC |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 200:1 |
| Faarwen | Full color |
| Géigeliicht | CCFL |
| Interface | Analog |
| Panel Mark | NEC |
| Panel Modell | NL10276AC30-03 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.0 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 304.128×228.096 mm |
| skizzéieren | 350×265×20.5 mm |
| Uewerfläch | |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 200:1 (Typ.) |
| weisen Faarwen | Full color , CIE193142% |
| Äntwert Zäit | 15/40 (Typ.)(Tr/Td) |
| Vue Wénkel | 55/55/50/45 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 2 pcsCCFLEmbedded (Inverter) |
| Signal Interface | Analog RGB, 41 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | DMPC |
