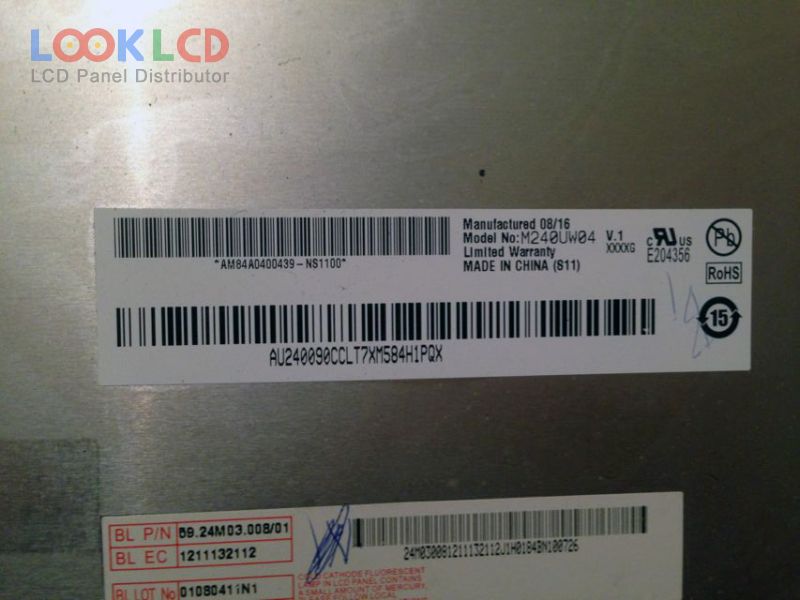

| Part Number | M240UW04 V1 |
| Mark | AUO |
| Gréisst | 24.0 |
| Applikatioun | DMPC |
| Opléisung | 1920×1200 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | M240UW04 V1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 24.0 inch |
| Resolutioun | 1920(RGB)×1200 , WUXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 518.4×324 mm |
| skizzéieren | 546.4×352 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193192% |
| Äntwert Zäit | 3.4/1.6 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
