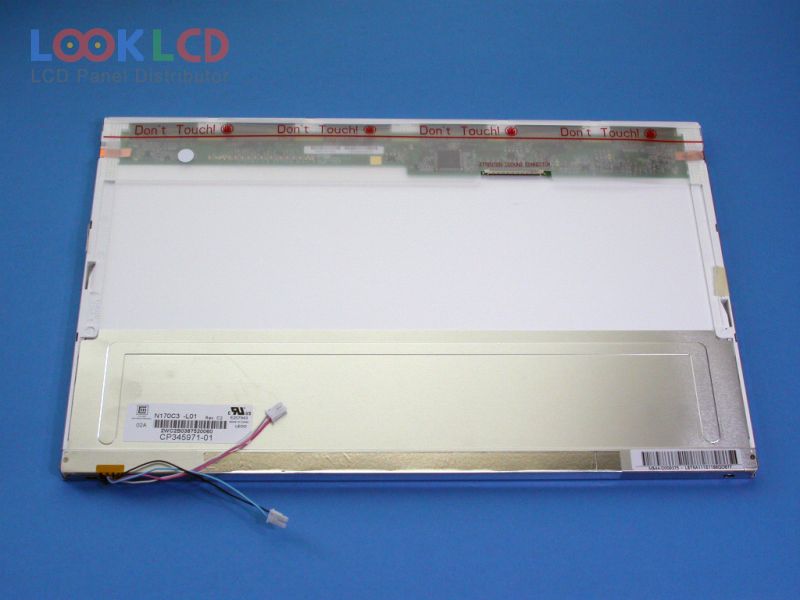

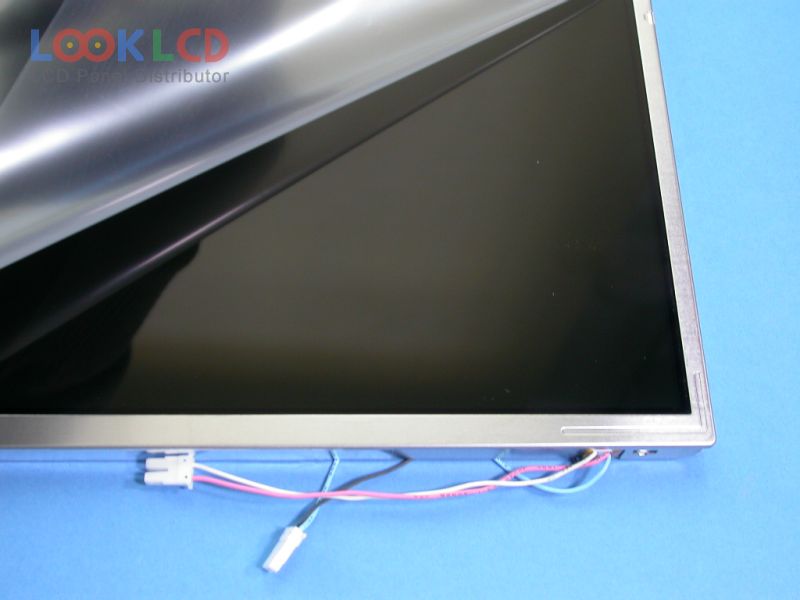

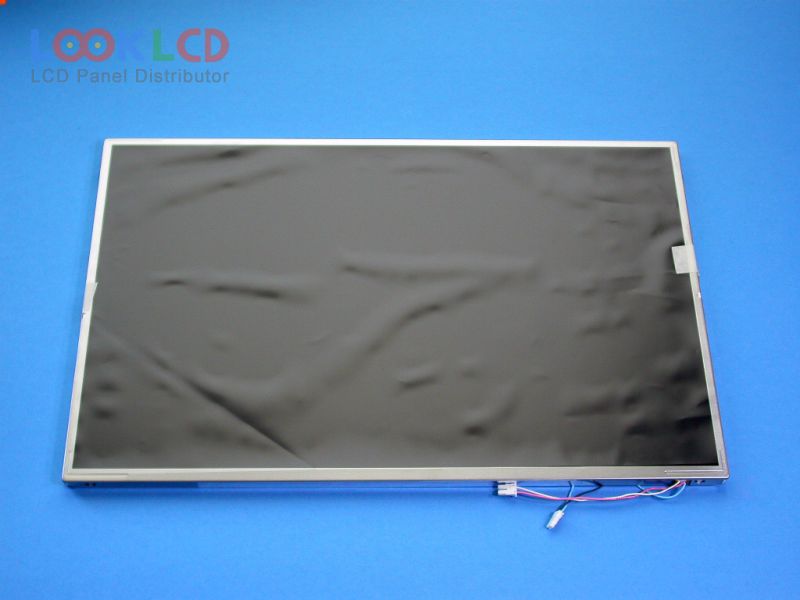

| Part Number | N170C3-L01 |
| Mark | Innolux |
| Gréisst | 17.0 |
| Applikatioun | NBPC |
| Opléisung | 1440×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | N170C3-L01 3 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.0 inch |
| Resolutioun | 1440(RGB)×900 , WXGA+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 367.2×229.5 mm |
| skizzéieren | 382.2×246.8×10 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193172% |
| Äntwert Zäit | 3/7 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
