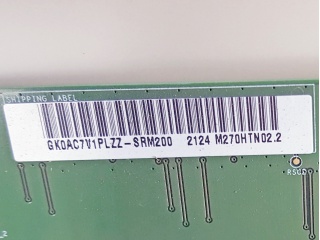

| Part Number | M270HTN02.2 CELL |
| Mark | AUO |
| Gréisst | 27.0 |
| Applikatioun | Desktop Monitor Gami |
| Opléisung | 1920×1080 |
| Zesummesetzung | a-Si TFT-LCD , CELL |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No |
| Interface | V-by-One |
| Panel Mark | AUO |
| Panel Gréisst | 27.0" |
| Resolutioun | 1920(RGB)×1080, FHD, 81PPI |
| Affichage Beräich | 597.6(W)×336.15(H) mm |
| Kontur Gréisst | 608.3(W)×349.3(H) ×1.5(D) mm |
| Hellegkeet | 0 cd/m² |
| Vue Wénkel | 85/85/80/80 (Typ.)(CR≥10) |
| beschte Vue op | 6 o'clock |
| Glas Déift | 0.50+0.50 mm |
| weisen Faarwen | 16.7M 71% NTSC |
| Frequenz | 144Hz |
| Chauffeur ic | COF Built-in 6 source chips |
| Panel Gewiicht | 665g (Typ.) |
| Signal Interface | V-by-One 8 lane , 40 pins Connector |
| Input Volt | 12.0V (Typ.) |
| Ëmwelt | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Modell | M270HTN02.2 CELL |
| Panel Typ | a-Si TFT-LCD , CELL |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | - |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 3.8/1.2 (Typ.)(Tr/Td) |
| transmissivitéit | 5.3% (Typ.)(with Polarizer) |
| Lampe Typ | No B/L |
| Touchscreens | Without |
| Applikatioun | Desktop Monitor Gaming |
