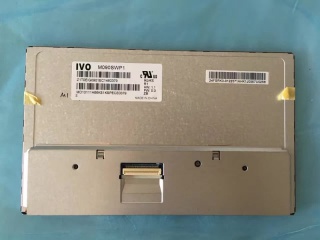

| Part Number | M090SWP1 R1 |
| Mark | IVO |
| Gréisst | 9.0 |
| Applikatioun | Industrial |
| Opléisung | 800×480 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | - |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | |
| Panel Mark | IVO |
| Panel Gréisst | 9.0" |
| Resolutioun | 800(RGB)×480, WVGA, 104PPI |
| Affichage Beräich | 198(W)×111.696(H) mm |
| Kontur Gréisst | 211.1(W)×128.4(H) ×7.1(D) mm |
| Hellegkeet | - |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10) |
| beschte Vue op | 6 o'clock |
| weisen Faarwen | 16.7M 50% NTSC |
| Frequenz | 60Hz |
| Gewiicht | - |
| Panel Modell | M090SWP1 R1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| bezel Ouverture | 201.0(W)×114.7(H) mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Kontrast Verhältnis | 500:1 (Typ.) (TM) |
| Display Modus | TN, Normally White, Transmissive |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Lampe Typ | WLED , 20K hours , With LED Driver |
| Touchscreens | Without |
| Applikatioun | Industrial |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| TX23D85VM0BAA | KOE | 9.0 | 1280×768 |
