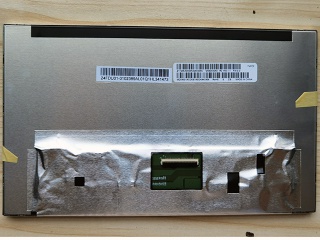

| Part Number | M090AWA5 R0 |
| Mark | IVO |
| Gréisst | 9.0 |
| Applikatioun | Outdoor High Brightn |
| Opléisung | 1280×720 |
| Zesummesetzung | LCM, a-Si TFT-LCD |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 7S4P WLED , 15K hours , No Driver |
| Interface | |
| Fabrikant beschwéiert | IVO |
| Modell Numm | M090AWA5 R0 |
| Écran Gréisst | 9.0 inch |
| Écran Typ | LCM, a-Si TFT-LCD |
| Pixel Zuel | 1280(RGB)×720 (WXGA) 163PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 198.72 × 111.78 (H×V) |
| Kontur (mm) | 212.2 × 127.5 × 10.5 (H×V×D) |
| Bezel Beräich (mm) | 201.72 × 114.78 (H×V) |
| Behandlung | Antiglare, Hard coating (3H), Reflection 6.0% (Max.) |
| luminance | 880 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | IPS, Normally Black, Transmissive |
| Faarfdéift | 16.7M 70% NTSC |
| mass | 335g (Max.) |
| benotzt fir | Outdoor High Brightness Automotive Display |
| Erfrëschungsrate | 60Hz |
| touchscreen | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| CLAA090NA06CW | CPT | 9.0 | 1024×600 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| NL192108AC10-01D | NLT | 9.0 | 1920×1080 |
| T-55562D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
